SKU: EIL25DNIRO-FLURO

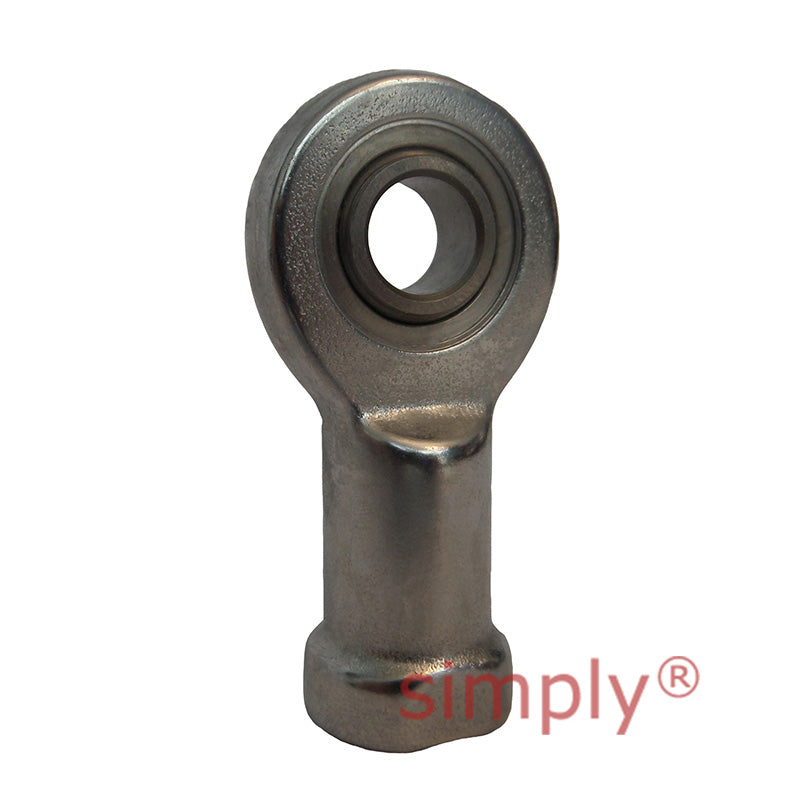

Fluro EIL25DNIRO Left Hand Stainless Steel / PTFE Lined Maintenance Free Female Plain Rod End M24x2 Thread
Fluro EIL25DNIRO Left Hand Stainless Steel / PTFE Lined Maintenance Free Female Plain Rod End M24x2 Thread
Out of stock
Share this product
Description
Description
Fluro EI..D-NIRO Series Zinc Plated Steel Maintenance Free Female Plain Rod Ends: Rod Ends with female thread, maintenance free, made from stainless steel with maintenance free Spherical Plain Bearings GE..EC-NIRO. For use at high unidirectional loads, in corrosive environments and limited fitting dimensions
Benefits: Maintenance Free
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M24x2
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Thread Length:
- 24x2mm
- Inside Diameter:
- 25mm
- Material:
- Stainless Steel / PTFE Lined
Technical
Technical
| Bore Size D | 25mm |
|---|---|
| B | 20mm |
| M | 17mm |
| A | 64mm |
| F | 94mm |
| L | 126mm |
| K | 42mm |
| J | 33.5mm |
| O | 29.3mm |
| SW | 36mm |
| Thread Size G | M24x2 |
| GL | 48mm |
| Static Load Co | 73kN |
| Dynamic Load | 96kN |
| Approx weight | 0.64kg |
