SKU: EE941206D/941950-TIM

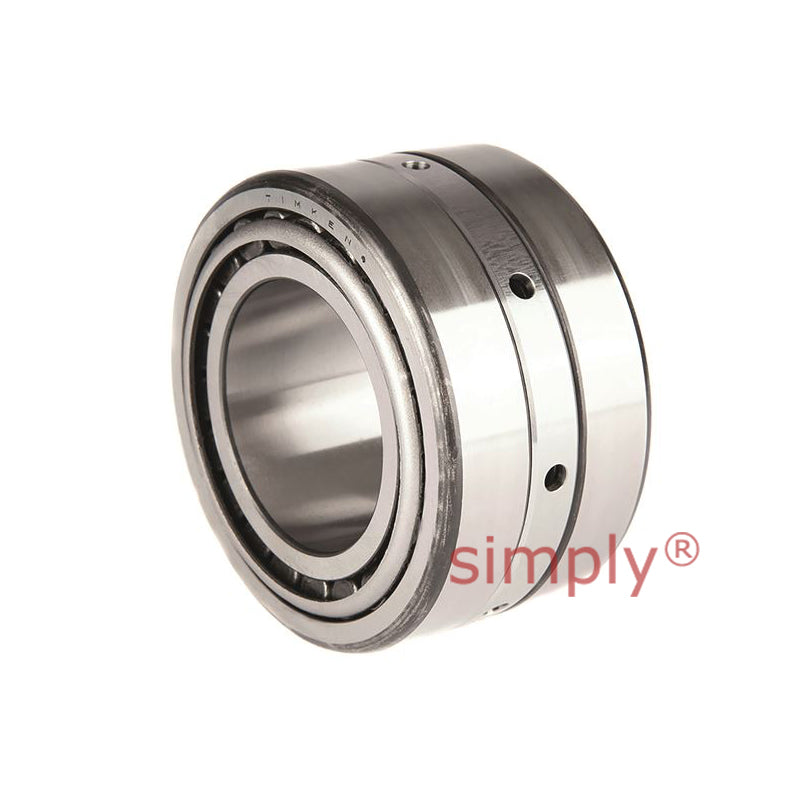

Timken EE941206D/941950 TDI Double Inner Race Taper Roller Bearing 12x19.5x5.4312x5.3125 inch
Timken EE941206D/941950 TDI Double Inner Race Taper Roller Bearing 12x19.5x5.4312x5.3125 inch
Out of stock
Description
Description

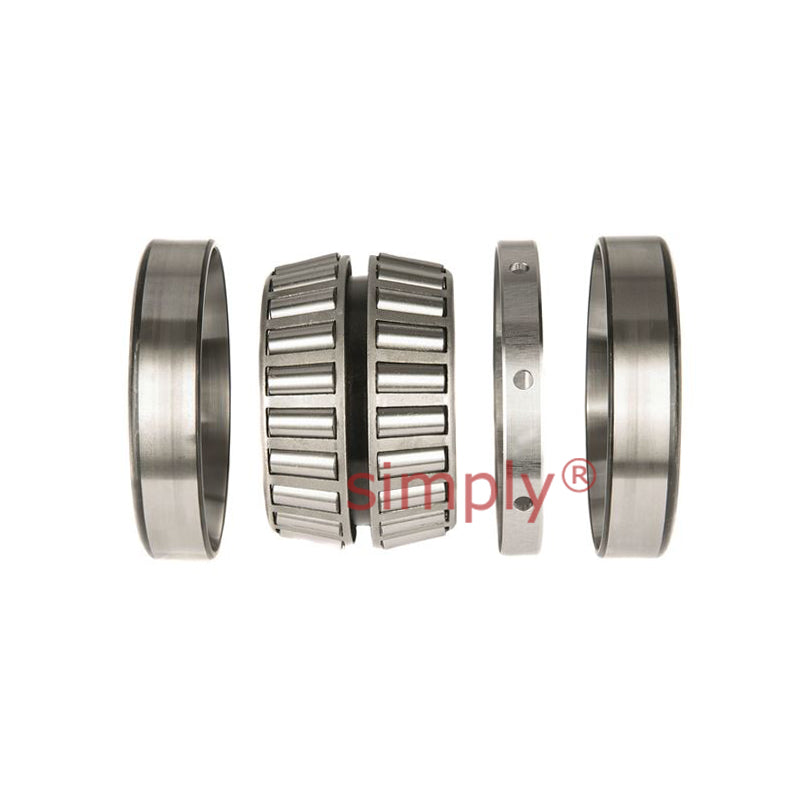

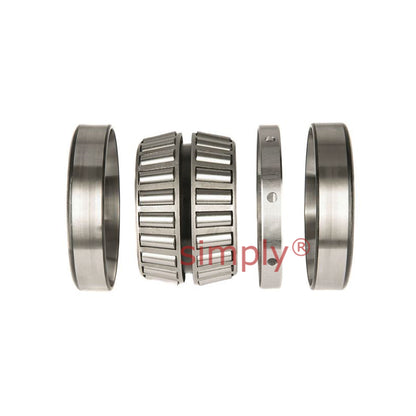

Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 304.8mm = 12 inch
- Outside Diameter:
- 495.3mm = 19.5 (19-1/2) inch
- Width:
- 137.95mm = 5.431 inch
Technical
Technical
| d | 304.8mm = 12 inch |
|---|---|
| D | 495.3mm = 19.5 inch |
| T | 137.952mm = 5.4312 inch |
| C | 134.938mm = 5.3125 inch |
| Dynamic (1) C1 | 2310000N |
| Factors (5) e | 0.4 |
| Factors (5) Y1 | 1.68 |
| Factors (5) Y2 | 2.5 |
| Dynamic (2) C90 | 343000N |
| Dynamic (2) Ca90 | 236000N |
| Dynamic (2) C90(2) | 598000N |
| Factors (5) K | 1.45 |
| Shaft max shaft fillet radius R (3) | 1.5mm = 0.06 inch |
| Shaft backing shoulder diameter da | 329mm = 12.95 inch |
| Housing max shaft fillet radius r (3) | 3.3mm = 0.13 inch |
| Housing backing shoulder diameter Db | 459mm = 18.07 inch |
| G1 | 1770 |
| G2 | 187 |
| Cg | 0.1657 |
