SKU: EE649240/310-SKF

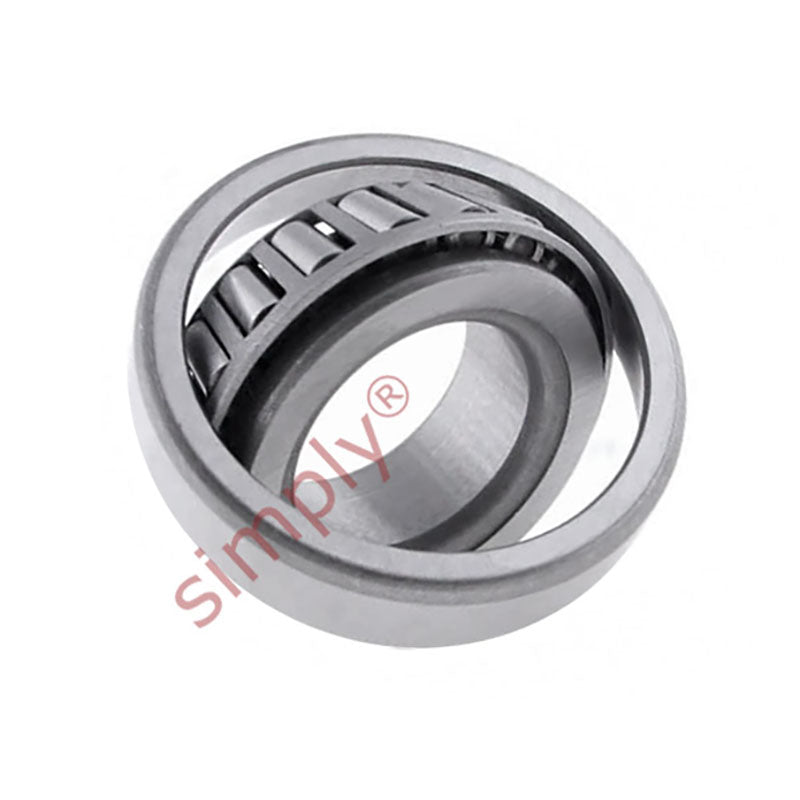

SKF EE649240/310 Imperial Taper Roller Bearing 24x31x3.6875 inches

Name: SKF EE649240/310 Imperial Taper Roller Bearing 24x31x3.6875 inches
Brand: SKF
SKU: EE649240/310-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: SKF - High Quality
Inside Diameter:: 609.6mm = 24 inch
Outside Diameter:: 787.4mm = 31 inch
Width:: 93.66mm = 3.687 (3-11/16) inch
Seals / Shields:: None

Technical

d	609.6mm
D	787.4mm
T	93.662mm
Dynamic load	2160 kN
Static load	5300 kN
Fatigue load limit Pu	380 kN
Reference speed	450 rpm
Limiting speed	670 rpm
Weight	110 kg
d1	687mm
B	93.662mm
C	69.85mm
r1r2 min	6.4mm
r3r4 min	6.4mm
a	125mm
da max	643mm
db min	642mm
Da min	732mm
Da max	755mm
Db min	755mm
Ca min	17mm
Cb min	23.5mm
ra max	6mm
rb max	6mm
Calculation factor e	0.37
Calculation factor Y	1.6
Calculation factor Y0	0.9
