SKU: EE480181D/480340/Y2S-480340-TIM

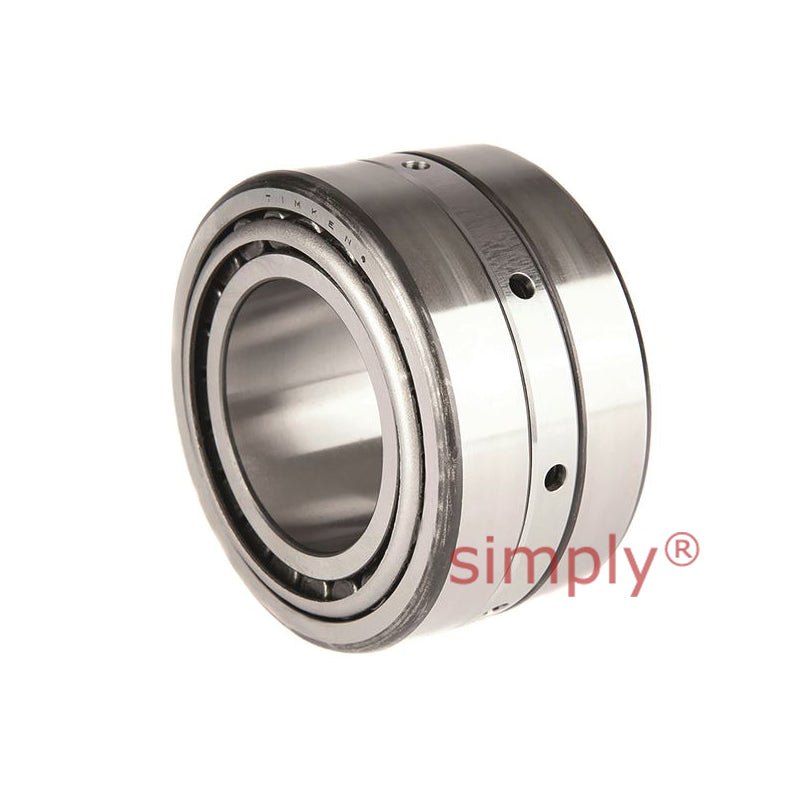

Timken EE480181D/480340/Y2S-480340 TDI Double Inner Race Taper Roller Bearing 18x33.996x14.5x14.5 inch
Timken EE480181D/480340/Y2S-480340 TDI Double Inner Race Taper Roller Bearing 18x33.996x14.5x14.5 inch
Out of stock
Description
Description

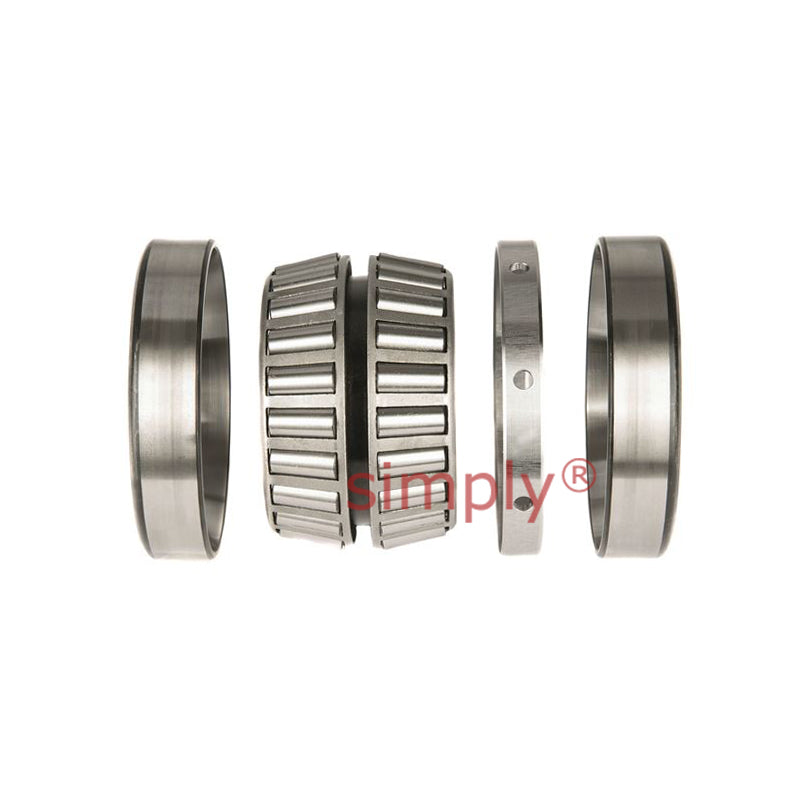

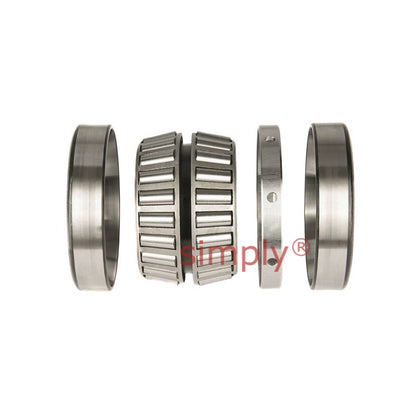

Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 457.2mm = 18 inch
- Outside Diameter:
- 863.5mm = 33.996 inch
- Width:
- 368.3mm = 14.5 (14-1/2) inch
Technical
Technical
| d | 457.2mm = 18 inch |
|---|---|
| D | 863.498mm = 33.996 inch |
| T | 368.3mm = 14.5 inch |
| C | 368.3mm = 14.5 inch |
| Dynamic (1) C1 | 9200000N |
| Factors (5) e | 0.36 |
| Factors (5) Y1 | 1.87 |
| Factors (5) Y2 | 2.79 |
| Dynamic (2) C90 | 1370000N |
| Dynamic (2) Ca90 | 845000N |
| Dynamic (2) C90(2) | 2390000N |
| Factors (5) K | 1.62 |
| Shaft max shaft fillet radius R (3) | 6.4mm = 0.25 inch |
| Shaft backing shoulder diameter da | 516mm = 20.31 inch |
| Housing max shaft fillet radius r (3) | 6.4mm = 0.25 inch |
| Housing backing shoulder diameter Db | 780mm = 30.71 inch |
| G1 | 7380 |
| G2 | 343 |
| Cg | 0.2575 |
