SKU: EE275108/275161D/X2S275108-TIM

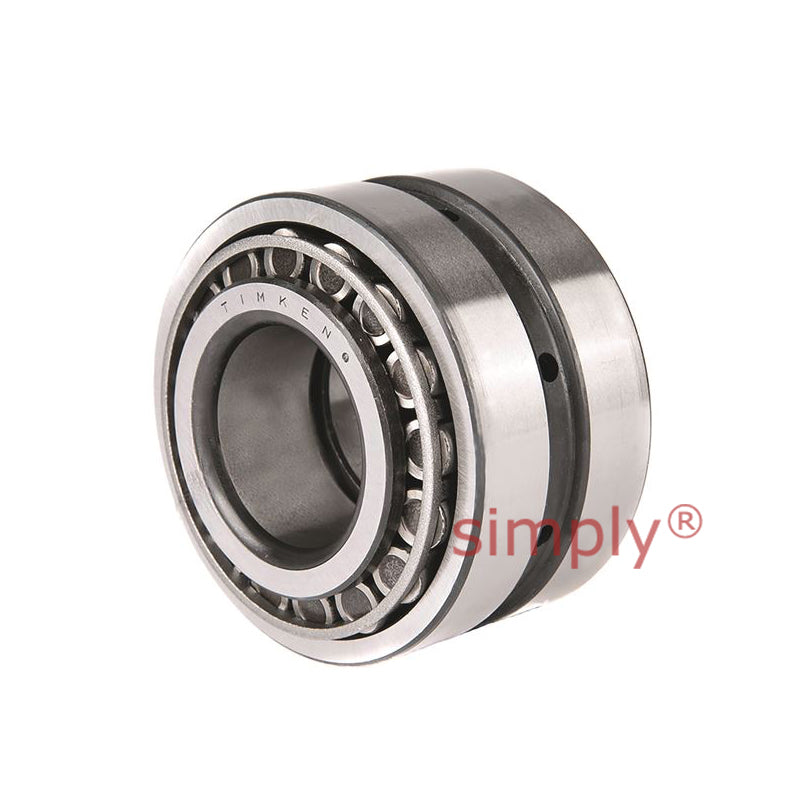

Timken EE275108/275161D/X2S275108 TDO Double Outer Race Taper Roller Bearing 10.75x16x6.125x4.25 inch
Timken EE275108/275161D/X2S275108 TDO Double Outer Race Taper Roller Bearing 10.75x16x6.125x4.25 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 273.05mm = 10.75 inch
- Outside Diameter:
- 406.40mm = 16 inch
- Width:
- 155.58mm = 6.125 inch
Technical
Technical
| d | 273.05mm = 10.75 inch |
|---|---|
| D | 406.4mm = 16 inch |
| T | 155.575mm = 6.125 inch |
| C | 107.95mm = 4.25 inch |
| Dynamic (1) C1 | 1510000N |
| Factors (5) e | 0.4 |
| Factors (5) Y1 | 1.68 |
| Factors (5) Y2 | 2.5 |
| Dynamic (2) C90 | 224000N |
| Dynamic (2) Ca90 | 154000N |
| Dynamic (2) C90(2) | 391000N |
| Factors (5) K | 1.45 |
| Shaft max shaft fillet radius R(3) | 6.4mm = 0.25 inch |
| Shaft backing shoulder diameter db | 301mm = 11.85 inch |
| Housing max shaft fillet radius r(3) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Da | 378mm = 14.89 inch |
| G1 | 1450 |
| G2 | 201 |
| Cg | 0.1555 |
