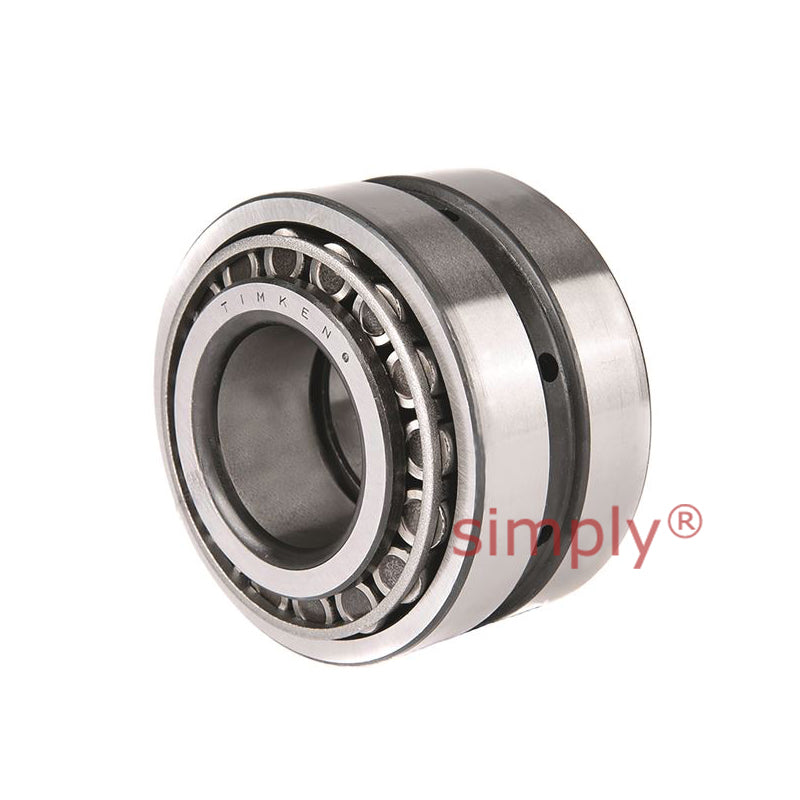

Timken EE170950/171451CD/X1S170951 TDO Double Outer Race Taper Roller Bearing 9.5x14.5x4.75x3.375 inch
Timken EE170950/171451CD/X1S170951 TDO Double Outer Race Taper Roller Bearing 9.5x14.5x4.75x3.375 inch
Out of stock
Description
Description

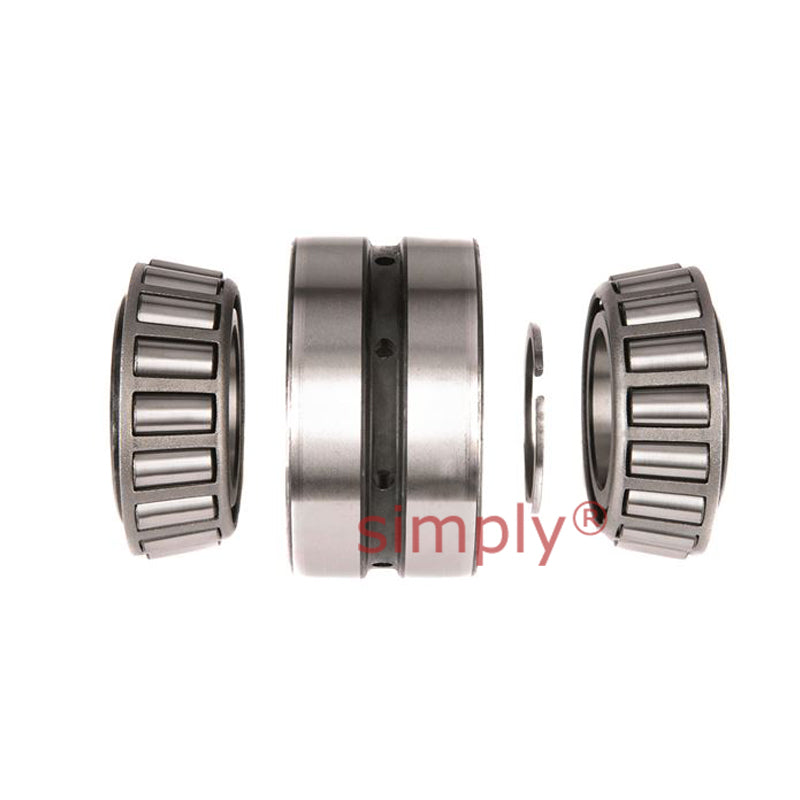

Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 241.30mm = 9.5 inch
- Outside Diameter:
- 368.30mm = 14.5 inch
- Width:
- 120.65mm = 4.75 inch
Technical
Technical
| d | 241.3mm = 9.5 inch |
|---|---|
| D | 368.3mm = 14.5 inch |
| T | 120.65mm = 4.75 inch |
| C | 85.725mm = 3.375 inch |
| Dynamic (1) C1 | 956000N |
| Factors (5) e | 0.36 |
| Factors (5) Y1 | 1.86 |
| Factors (5) Y2 | 2.77 |
| Dynamic (2) C90 | 142000N |
| Dynamic (2) Ca90 | 88500N |
| Dynamic (2) C90(2) | 248000N |
| Factors (5) K | 1.61 |
| Shaft max shaft fillet radius R(3) | 6.4mm = 0.25 inch |
| Shaft backing shoulder diameter db | 269mm = 10.59 inch |
| Housing max shaft fillet radius r(3) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Da | 337mm = 13.27 inch |
| Pin Ka | 19mm = 0.75 inch |
| Pin Kb | 10.2mm = 0.4 inch |
| G1 | 1070 |
| G2 | 172 |
| Cg | 0.1354 |
