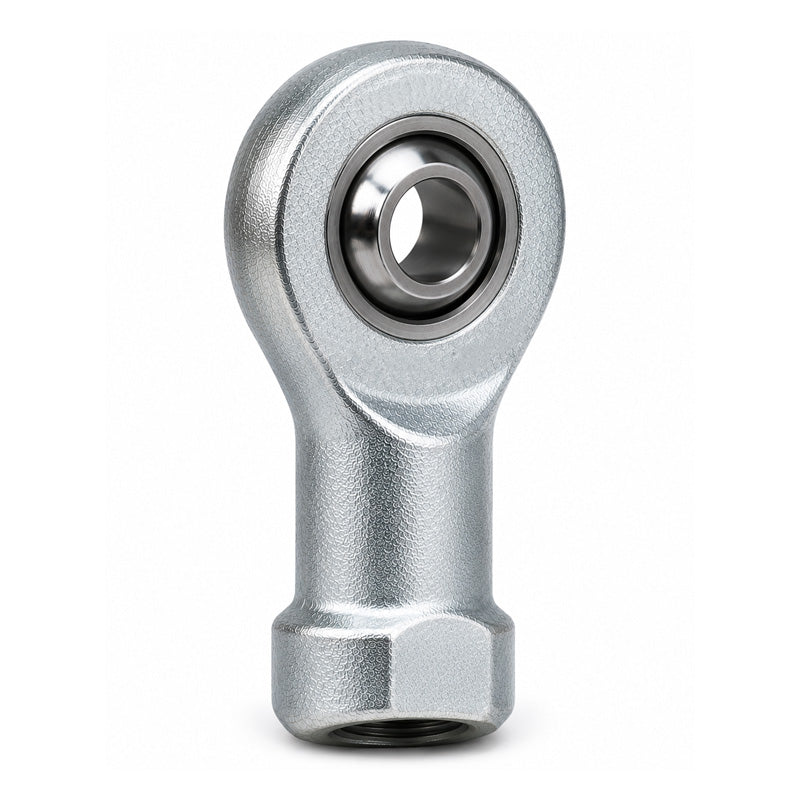

Durbal DPHS10.M10x1.25 Maintenance Required Right Hand Metric Steel Female Rod End M10x1.25 Thread

DURBAL Standard Maintenance Required Female Rod Ends with Pressed Spherical-Plain Bearing: Threaded female rod end consisting of a galvanised, heat-treated, forged steel housing with a bearing brass outer ring with oil groove and drill holes and a steel joint ball. Suitable for use with axial loads. Made of forged and heat-treated steel, protected against corrosion by galvanisation. Rod ends can be greased subsequently by means of a funnel-type lubrication nipple. Connection dimensions in accordance with DIN ISO 8139 for pneumatic cylinders. Temperature range: -40 deg C to +110 deg C.

Brand / Quality:

Durbal - High Quality

Thread Size:

M10x1.25

Thread M / F:

Female

Thread Direction:

Right Hand

Inside Diameter:

10mm
