SKU: DGK80SK-DURB

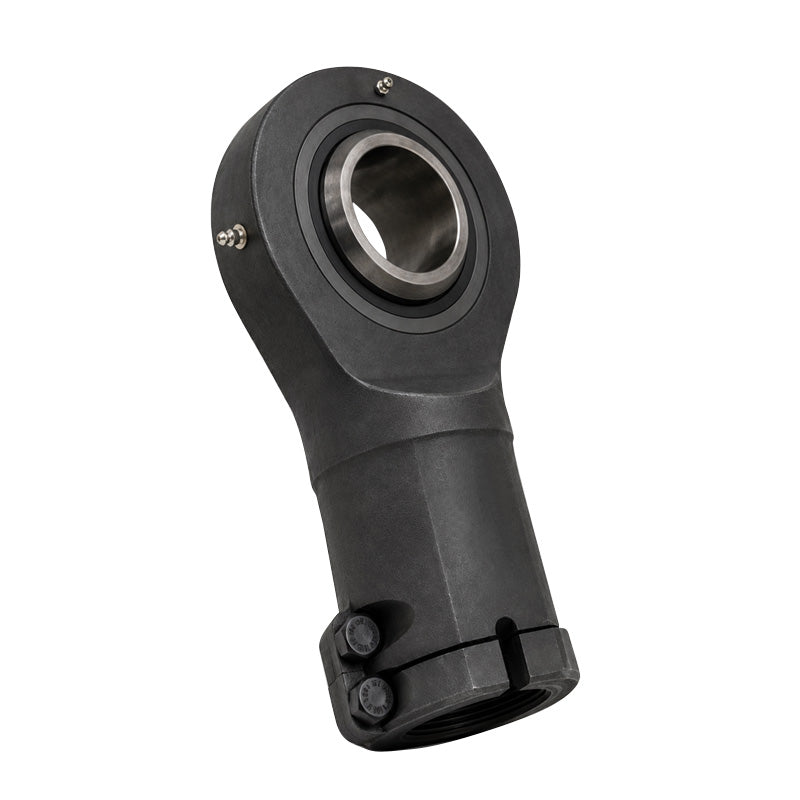

Durbal DGK80SK Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M90x3 Thread
Durbal DGK80SK Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M90x3 Thread
Out of stock
Description
Description
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M90x3
- Thread M / F:
- Female
- Inside Diameter:
- 63mm
Technical
Technical
| d | 80mm |
|---|---|
| d1 | 89.4mm |
| d2 | 176mm |
| d4 | 125mm |
| d5 | 168mm |
| dk | 105mm |
| G (Thread) | M90x3mm |
| B | 60mm |
| C1 | 55mm |
| C2 | 55mm |
| l3 | 120mm |
| l4 | 305mm |
| l7 | 80mm |
| h1 | 210mm |
| tilt angle α | 6 deg |
| weight | 16kg |
| basic load rating dyn C | 320 kN |
| basic load rating stat Co | 712 kN |
| radial clearance CN | 8-142 µm |
