SKU: DGK100SK-DURB

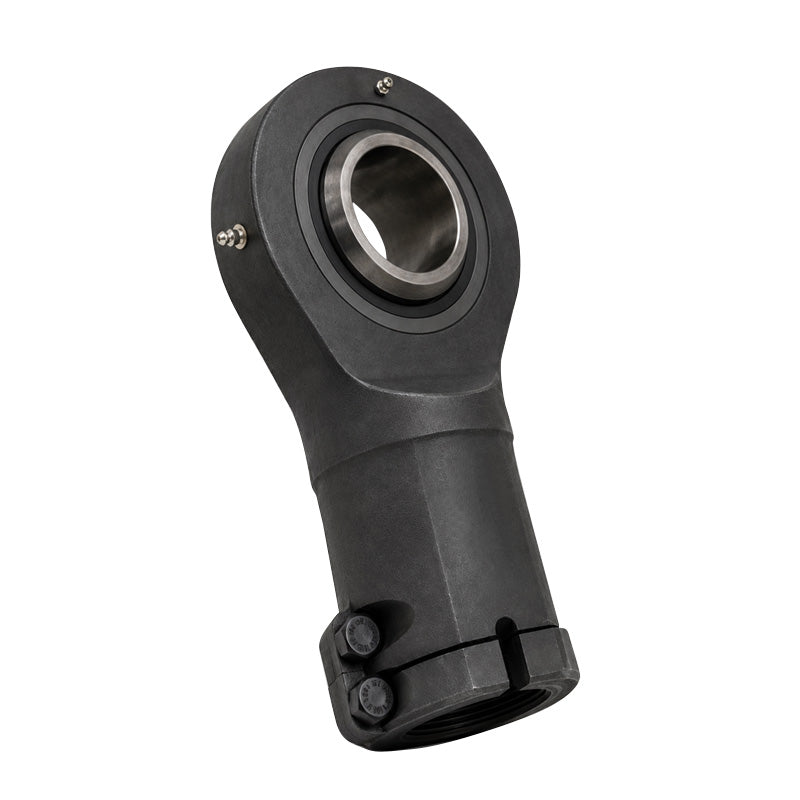

Durbal DGK100SK Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M110x4 Thread
Durbal DGK100SK Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M110x4 Thread
Out of stock
Description
Description
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M110x4
- Thread M / F:
- Female
- Inside Diameter:
- 80mm
Technical
Technical
| d | 100mm |
|---|---|
| d1 | 109.5mm |
| d2 | 230mm |
| d4 | 170mm |
| d5 | 188mm |
| dk | 130mm |
| G (Thread) | M110x4mm |
| B | 70mm |
| C1 | 70mm |
| C2 | 65mm |
| l3 | 150mm |
| l4 | 400mm |
| l7 | 105mm |
| h1 | 275mm |
| tilt angle α | 7 deg |
| weight | 34kg |
| basic load rating dyn C | 488 kN |
| basic load rating stat Co | 1192 kN |
| radial clearance CN | 8-165 µm |
