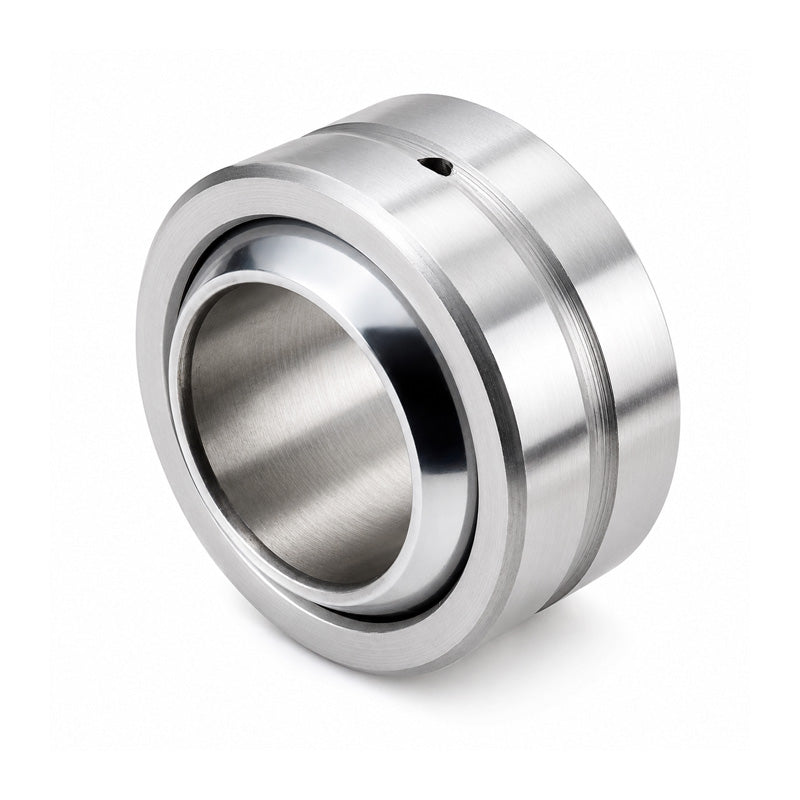

Durbal DGE560DW-2RS Maintenance Free Steel / PTFE Lined XXL Large Radial Spherical Plain Bearing with Seals 560x750x258mm

DURBAL XXL-Large-Radial-Spherical-Plain Bearing with Seals - Sliding Combination Steel/PTFE: These spherical bearings consist of a hardened, polished and hard chromium plated steel joint ball with a heat-treated radially split outer ring (held together by means of screws and dowel pins) bonded with PTFE-sheet and 2RS lips seals on both sides. For use at high loads with a constant direction if smooth operation is required; limited suitability for alternating- and shock loads. Temperature range: -40 deg C to +200 deg C.
Benefits: 2RS lip seals on both sides prevent the penetration of coarse dirt particles inside the bearing.

Brand / Quality:

Durbal - High Quality

Inside Diameter:

560mm

Material:

PTFE Lined
