SKU: DGE40SX-DURB
Durbal DGE40SX Maintenance Required Steel / Steel Angular Contact Spherical Plain Bearing 40x68x19mm
Durbal DGE40SX Maintenance Required Steel / Steel Angular Contact Spherical Plain Bearing 40x68x19mm
Equivalent to: GE40SX
Out of stock
Share this product
Description
Description
DURBAL Maintenance Required Angular Contact Spherical-Plain Bearing - Sliding Combination Steel/Steel: These spherical bearings consist of a hardened, phosphated steel joint ball and a hardened, phosphated steel outer ring with oil groove and drill holes. Use for taking up axial loads in addition to the radial forces is also suited to alternating dynamic loads. Temperature range: -40 deg C to +200 deg C.
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 40mm

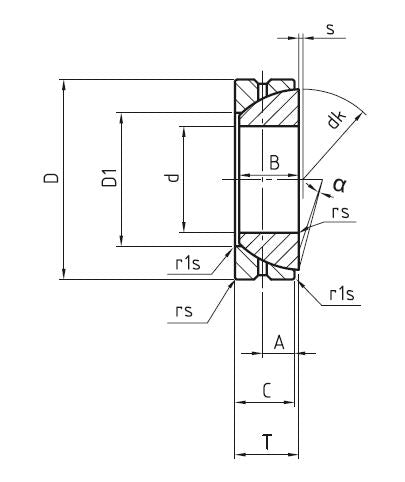

Technical
Technical
| d | 40mm |
|---|---|
| dk | 60mm |
| D | 68mm |
| D1 | 46.8mm |
| A | 8.5mm |
| B | 18mm |
| C | 18mm |
| S | 1.5mm |
| T | 19mm |
| rs | 1mm |
| r1s | 0.3mm |
| tilt angle α | 1.9 deg |
| weight | 0.32kg |
| basic load rating dyn C | 90 kN |
| basic load rating stat Co | 450 kN |
