SKU: CSC-16-SB-IKO
IKO CSC16SB Hex Head Stainless Steel Crowned Cam Follower 1/2 inch Outside Diameter Allow 7-10 Days
IKO CSC16SB Hex Head Stainless Steel Crowned Cam Follower 1/2 inch Outside Diameter Allow 7-10 Days
Out of stock
Description
Description
|

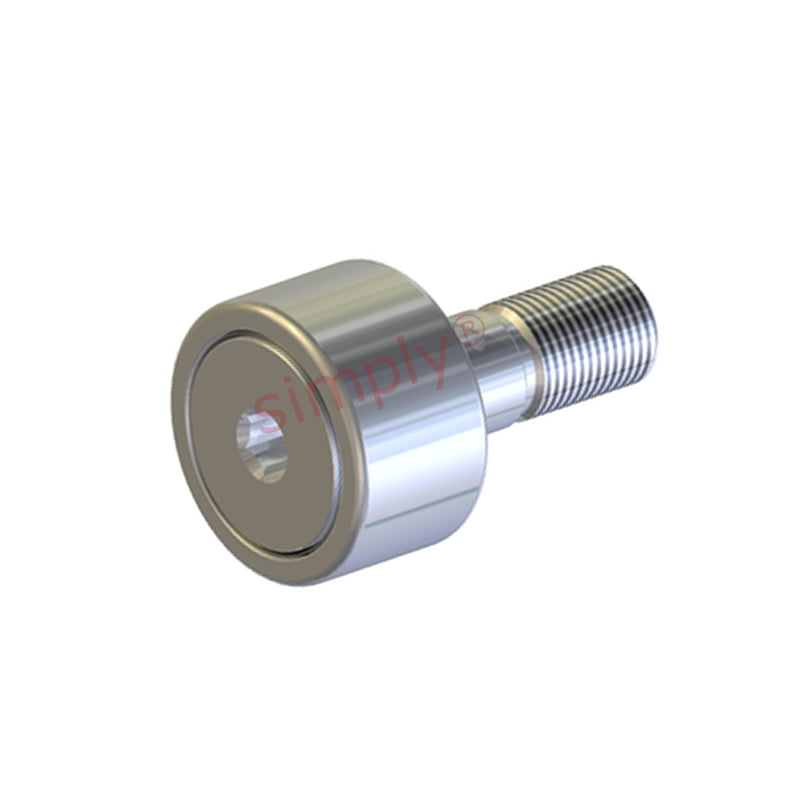

Stainless Steel Crowned Cam Follower with Hex Head: These bearings are dimensionally interchangeable with standard cam followers offered by other major manufacturers. The Seal Tight design minimises contamination to keep machinery running longer. These bearings contain a food-grade lubricant to ensure compatibility with any application. Benefits: Minimises contamination, re-lubricatable, high precision manufacturing. Note: Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- IKO - High Quality
- Outside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Width:
- 9.53mm = 0.375 (3/8) inch
- Pitch:
- UNF 10-32
Technical
Technical
| A | 0.5 inch |
|---|---|
| B | 0.375 inch |
| C | 0.19 inch |
| D | 0.625 inch |
| E | 1/4 inch |
| Thread class 2A F | 10-32 UNF |
| Min boss diameter | 19/64 inch |
| Recommended bore | 0.19 inch |
| Recommended torque | 8 lbf-in |
| Basic dynamic rating | 610 lbs |
| Max static capacity | 310 lbs |
