SKU: CNBH-64-SB-IKO

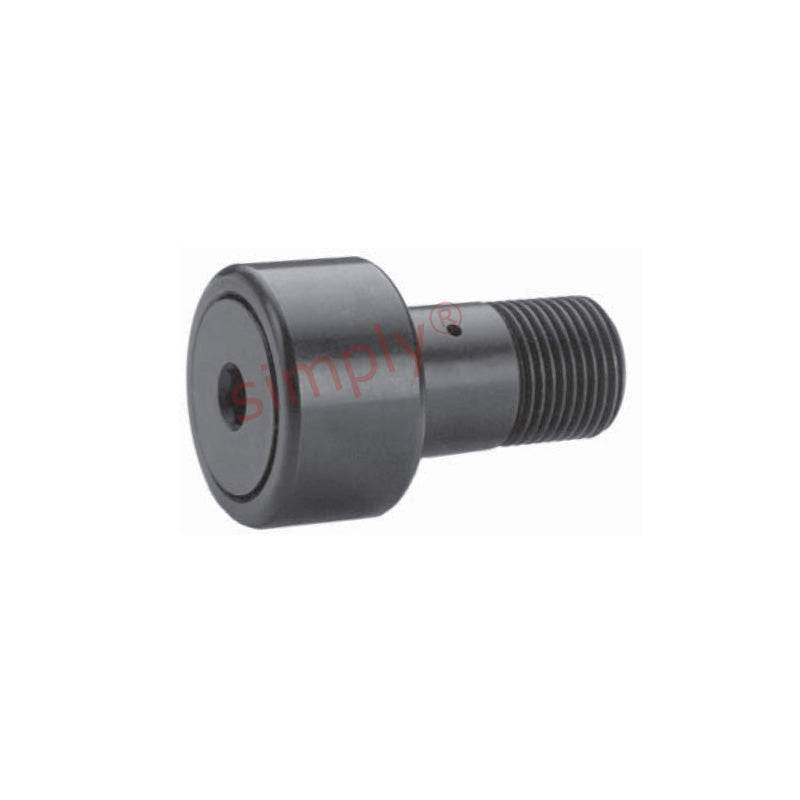

IKO CNBH64SB Heavy Duty Hex Head Sealed Cylindrical Cam Follower 2 inch Outside Diameter
IKO CNBH64SB Heavy Duty Hex Head Sealed Cylindrical Cam Follower 2 inch Outside Diameter
Out of stock
Description
Description
|
Heavy Duty Sealed Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication, provides ease of installing with a hex wrench. |
- Brand / Quality:
- IKO - High Quality
- Outside Diameter:
- 50.8mm = 2 inch
- Width:
- 31.75mm = 1.25 (1-1/4) inch
- Pitch:
- UNF 1-1/8-12
Technical
Technical
| A | 2 inch |
|---|---|
| B | 1.25 inch |
| C | 1.125 inch |
| D | 2 inch |
| E | 1 inch |
| Thread class 2A F | 1-1/8-12 UNF |
| G | 1/2 inch |
| H | 1/8 inch |
| J | 3/16 inch |
| Min boss diameter | 1-13/32 inch |
| Recommended bore | 1.125 inch |
| Recommended torque | 2800 lbf-in |
| Max static capacity | 21140 lbs |
| Basic dynamic rating | 8090 lbs |
