SKU: CNBH-22-B-IKO

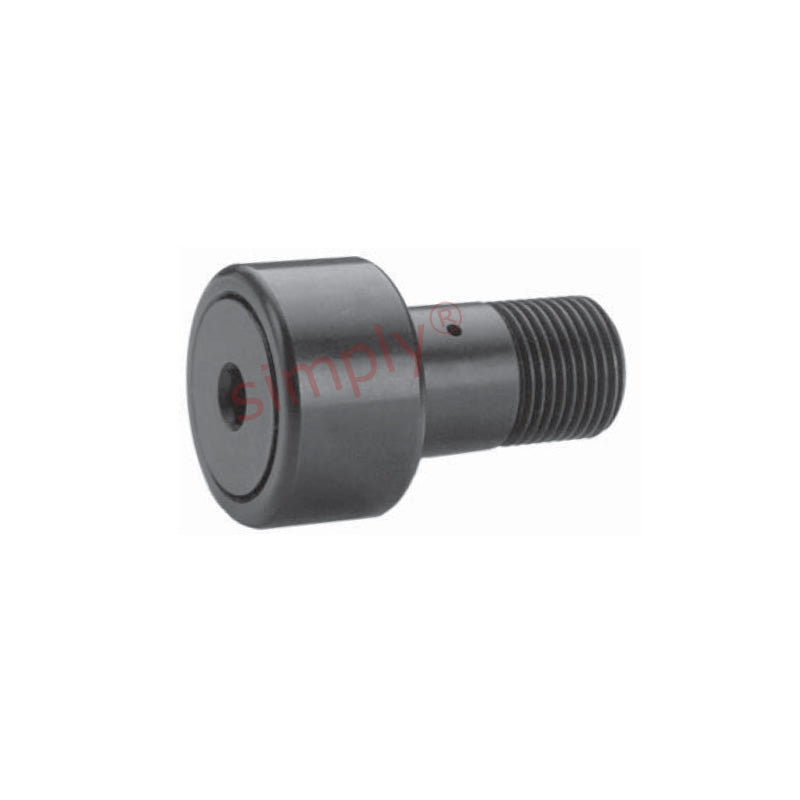

IKO CNBH22B Heavy Duty Hex Head Cylindrical Cam Follower 11/16 inch Outside Diameter Allow 7-10 Days
IKO CNBH22B Heavy Duty Hex Head Cylindrical Cam Follower 11/16 inch Outside Diameter Allow 7-10 Days
Out of stock
Description
Description
|
Heavy Duty Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, provides ease of installing with a hex wrench. |
- Brand / Quality:
- IKO - High Quality
- Outside Diameter:
- 17.46mm = 0.687 (11/16) inch
- Width:
- 11.11mm = 0.437 (7/16) inch
- Pitch:
- UNF 5/16-24
Technical
Technical
| A | 0.6875 inch |
|---|---|
| B | 0.4375 inch |
| C | 0.3125 inch |
| D | 0.75 inch |
| E | 0.312 inch |
| Thread class 2A F | 5/16-24 UNF |
| J | 1/8 inch |
| Min boss diameter | 15/32 inch |
| Recommended bore | 0.3125 inch |
| Recommended torque | 90 lbf-in |
| Max static capacity | 2480 lbs |
| Basic dynamic rating | 955 lbs |
