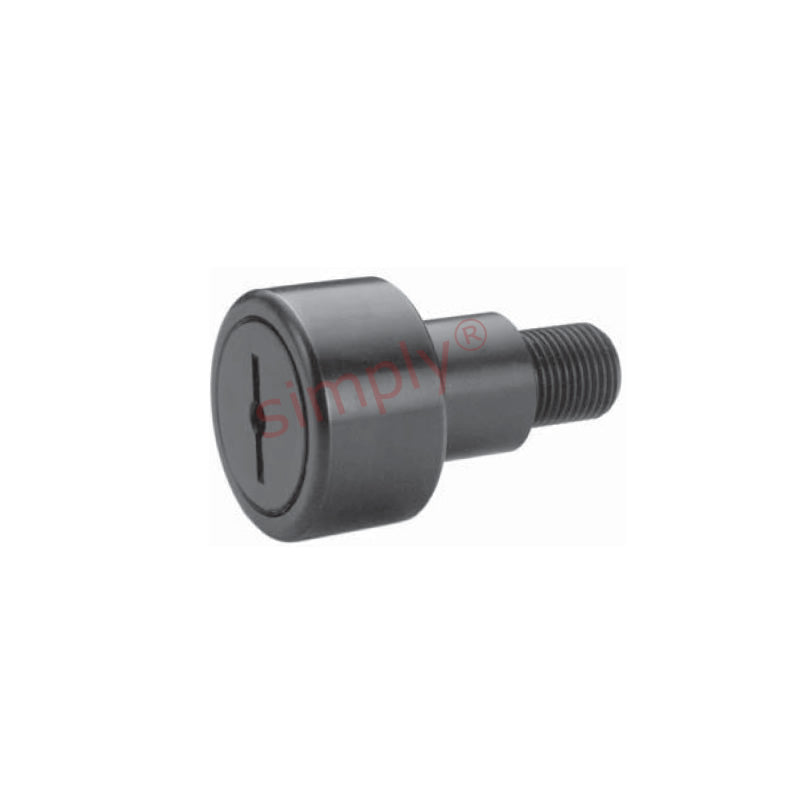

IKO CNBE22 Slotted Cylindrical Cam Follower with Eccentric Stud 11/16 inch Outside Diameter Allow 7-10 Days
IKO CNBE22 Slotted Cylindrical Cam Follower with Eccentric Stud 11/16 inch Outside Diameter Allow 7-10 Days
Out of stock
Description
Description
|
Cam Follower with Slotted Head and Eccentric Stud: Designed for applications where holding close tolerances of the mounting holes may prove difficult. The eccentric bushing is made of cold drawn steel so you can drill or dowel through the housing and into the stud for permanent locking. The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock. |
- Brand / Quality:
- IKO - High Quality
- Outside Diameter:
- 17.46mm = 0.687 (11/16) inch
- Width:
- 11.11mm = 0.437 (7/16) inch
- Pitch:
- UNF 1/4-28
Technical
Technical
| A | 0.6875 inch |
|---|---|
| B | 0.4375 inch |
| C | 0.437 inch |
| D | 0.375 inch |
| E | 0.75 inch |
| F | 0.312 inch |
| Thread class 2A G | 1/4-28 UNF |
| H | 1/8 inch |
| Min boss diameter | 23/64 inch |
| Recommended torque | 35 lbf-in |
| Max static capacity | 1215 lbs |
| Basic dynamic rating | 955 lbs |
