SKU: CNB-52-S-IKO

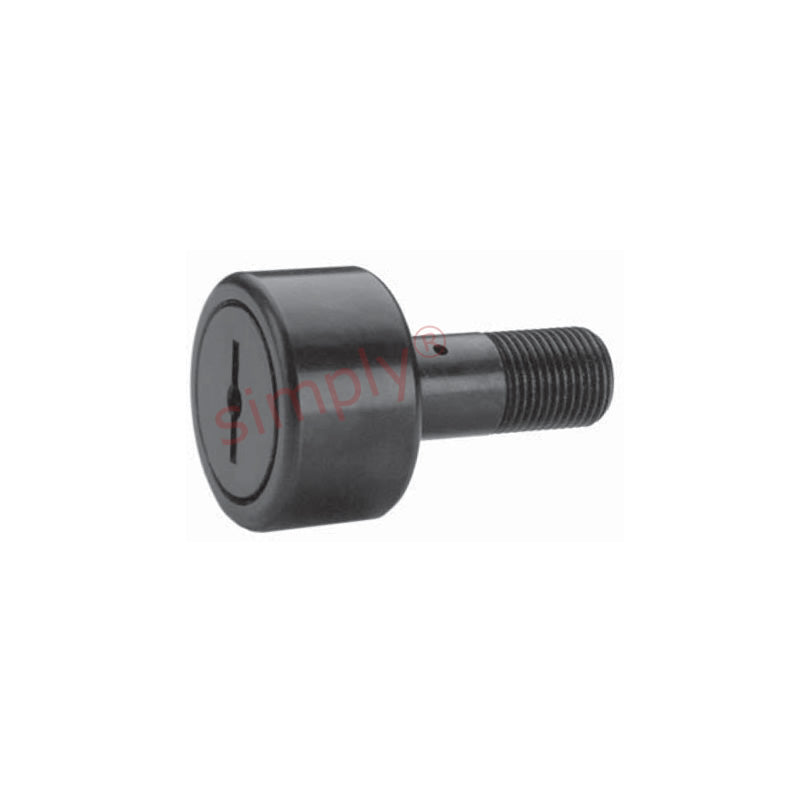

IKO CNB52S Sealed and Slotted Cylindrical Cam Follower 1-5/8 inch Outside Diameter Allow 7-10 Days
IKO CNB52S Sealed and Slotted Cylindrical Cam Follower 1-5/8 inch Outside Diameter Allow 7-10 Days
Out of stock
Description
Description
|
Sealed Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication. |
- Brand / Quality:
- IKO - High Quality
- Outside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Width:
- 22.23mm = 0.875 (7/8) inch
- Pitch:
- UNF 5/8-18
Technical
Technical
| A | 1.625 inch |
|---|---|
| B | 0.875 inch |
| C | 0.625 inch |
| D | 1.5 inch |
| E | 0.75 inch |
| Thread class 2A F | 5/8-18 UNF |
| G | 3/8 inch |
| H | 3/32 inch |
| J | 3/16 inch |
| Min boss diameter | 57/64 inch |
| Recommended bore | 0.625 inch |
| Recommended torque | 650 lbf-in |
| Max static capacity | 5640 lbs |
| Basic dynamic rating | 4840 lbs |
