SKU: CM-UKT320AD1/HA2320-NTN

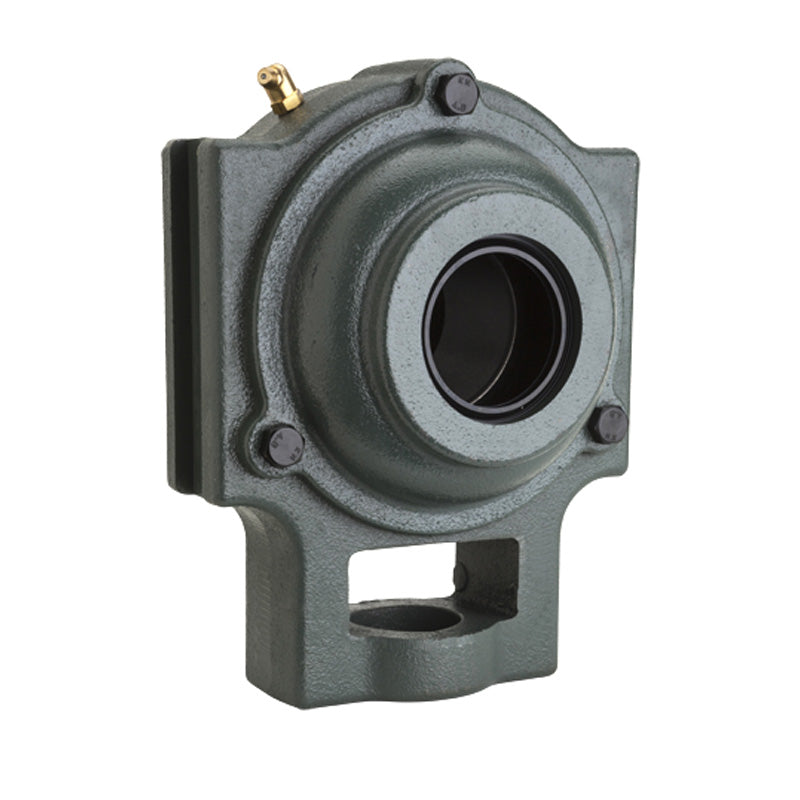

NTN CM-UKT320AD1/HA2320 Imperial Cast Iron Take Up Unit with Cast Iron Cover - Closed Version - Insert and Adaptor Sleeve Fits 3-7/16 inch Shaft - Allow 2-3 Days
NTN CM-UKT320AD1/HA2320 Imperial Cast Iron Take Up Unit with Cast Iron Cover - Closed Version - Insert and Adaptor Sleeve Fits 3-7/16 inch Shaft - Allow 2-3 Days
Out of stock
Description
Description
UKT300 Series Heavy Duty Take-Up Unit with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 87.31mm = 3.437 (3-7/16) inch
- Style:
- UKT
Technical
Technical
| Shaft diameter | 3-7/16 inch |
|---|---|
| N<sub>1</sub> | 1-7/8 inch |
| L<sub>2</sub> | 1-11/32 inch |
| H<sub>2</sub> | 6-7/8 inch |
| N<sub>2</sub> | 4-17/32 inch |
| N | 2-5/16 inch |
| L<sub>3</sub> | 7-7/8 inch |
| A<sub>1</sub> | 1.378 inch |
| H<sub>1</sub> | 10-15/64 inch |
| H | 11-13/32 inch |
| A<sub>2</sub> | 2-15/16 inch |
| A | 4-23/32 inch |
| r | 5-5/16 inch |
| L<sub>1</sub> | 8-9/32 inch |
| B<sub>1</sub> | 3.819 inch |
| t | 1-5/32 inch |
| L<sub>4</sub> | 13-25/32 inch |
| A<sub>5</sub> | 7-15/32 inch |
| Mass | 86 lbs |
