SKU: C-UCT317-307D1-NTN

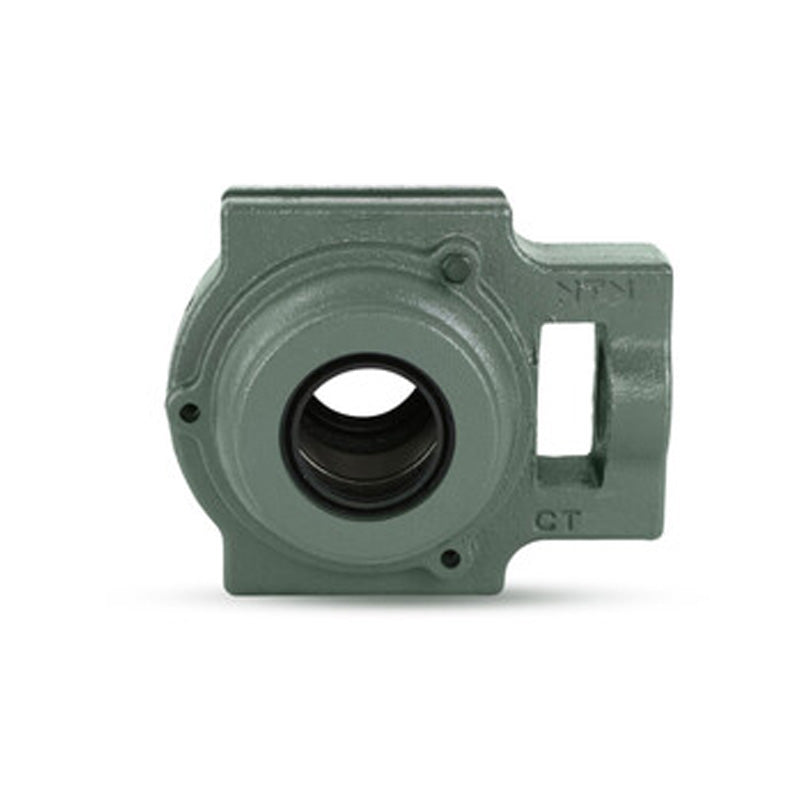

NTN C-UCT317-307D1 Imperial Cast Iron Take Up Unit with 3-7/16 inch Bore Bearing Unit with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCT317-307D1 Imperial Cast Iron Take Up Unit with 3-7/16 inch Bore Bearing Unit with Cast Iron Cover - Open Version - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 87.31mm = 3.437 (3-7/16) inch
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 3-7/16 inch |
| N<sub>1</sub> | 1-21/32 inch |
| L<sub>2</sub> | 1-1/4 inch |
| H<sub>2</sub> | 5-31/32 inch |
| N<sub>2</sub> | 3-27/32 inch |
| N | 2-3/32 inch |
| L<sub>3</sub> | 6-11/16 inch |
| A<sub>1</sub> | 1.26 inch |
| H<sub>1</sub> | 8-27/64 inch |
| H | 9-7/16 inch |
| L | 11-23/32 inch |
| A<sub>2</sub> | 2-17/32 inch |
| A | 4-1/32 inch |
| r | 4-17/32 inch |
| L<sub>1</sub> | 7-7/32 inch |
| B | 3.7795 inch |
| S | 1.575 inch |
| L<sub>4</sub> | 11-15/16 inch |
| A<sub>5</sub> | 6-11/16 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 147 kN |
| Static load C<sub>0r</sub> | 97 kN |
| Fatigue load limit C<sub>u</sub> | 6.55 kN |
| --- | Unit information |
| Mass | 55 lbs |
