SKU: C-UCT315-215D1-NTN

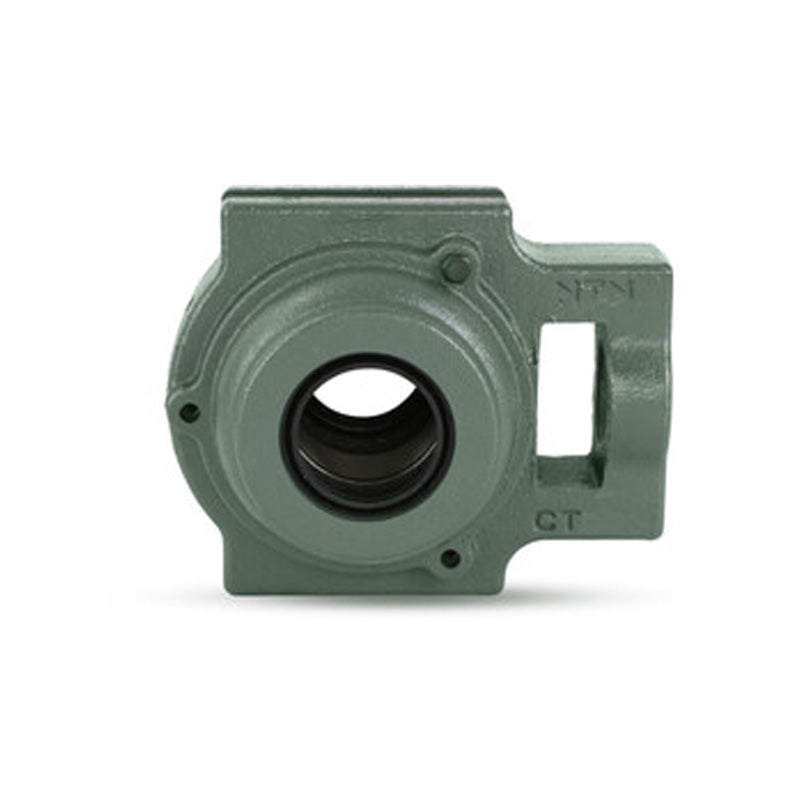

NTN C-UCT315-215D1 Imperial Cast Iron Take Up Unit with 2-15/16 inch Bore Bearing Unit with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCT315-215D1 Imperial Cast Iron Take Up Unit with 2-15/16 inch Bore Bearing Unit with Cast Iron Cover - Open Version - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 74.61mm = 2.937 (2-15/16) inch
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 2-15/16 inch |
| N<sub>1</sub> | 1-13/32 inch |
| L<sub>2</sub> | 1-1/16 inch |
| H<sub>2</sub> | 5-3/16 inch |
| N<sub>2</sub> | 3-11/32 inch |
| N | 1-13/16 inch |
| L<sub>3</sub> | 5-29/32 inch |
| A<sub>1</sub> | 1.024 inch |
| H<sub>1</sub> | 7-9/16 inch |
| H | 8-1/2 inch |
| L | 10-5/16 inch |
| A<sub>2</sub> | 2-5/32 inch |
| A | 3-17/32 inch |
| r | 4-1/32 inch |
| L<sub>1</sub> | 6-5/16 inch |
| B | 3.2283 inch |
| S | 1.26 inch |
| L<sub>4</sub> | 10-9/16 inch |
| A<sub>5</sub> | 5-29/32 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 126 kN |
| Static load C<sub>0r</sub> | 77 kN |
| Fatigue load limit C<sub>u</sub> | 5.55 kN |
| --- | Unit information |
| Mass | 37 lbs |
