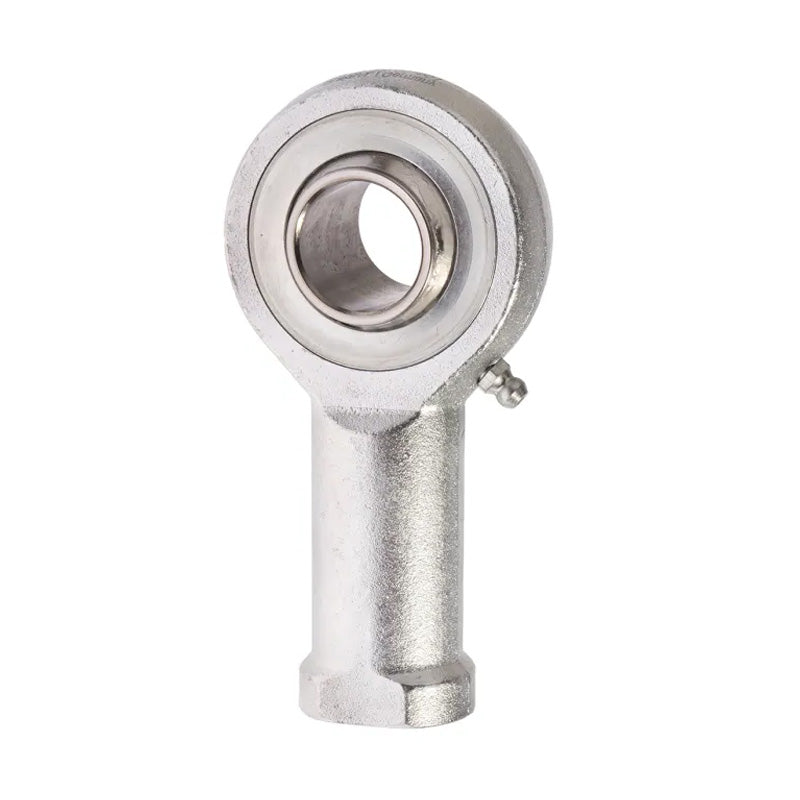

Durbal BRTF10-01-501 Right Hand Metric Steel Cage Design Female Rod End M10x1.25 Thread

DURBAL Heavy-Duty Caged Female Rod Ends with Integral Self-Aligning Roller Bearing: Threaded female rod end consisting of a galvanised forged steel housing with hardened super finished steel ball bearings running in a steel raceway and cage. For high speeds, wide swivelling angles or rotating movements. Made of forged steel, tempered, extremely high loads resistant and protected against corrosion by galvanisation. Low maintenance due to long-term lubrication with food-grade approval; the rod ends can be greased subsequently by means of a funnel or conical grease nipple. Connection dimensions in accordance with DIN ISO 8139 for pneumatic cylinders. Temperature range: -45° C to +120° C.
Benefits: Covering discs on both sides to prevent the penetration of coarse dirt particles inside the bearing.

Brand / Quality:

Durbal - High Quality

Thread Size:

M10x1.25

Thread M / F:

Female

Thread Direction:

Right Hand

Inside Diameter:

10mm
