SKU: BB-6003-B180-50-ES

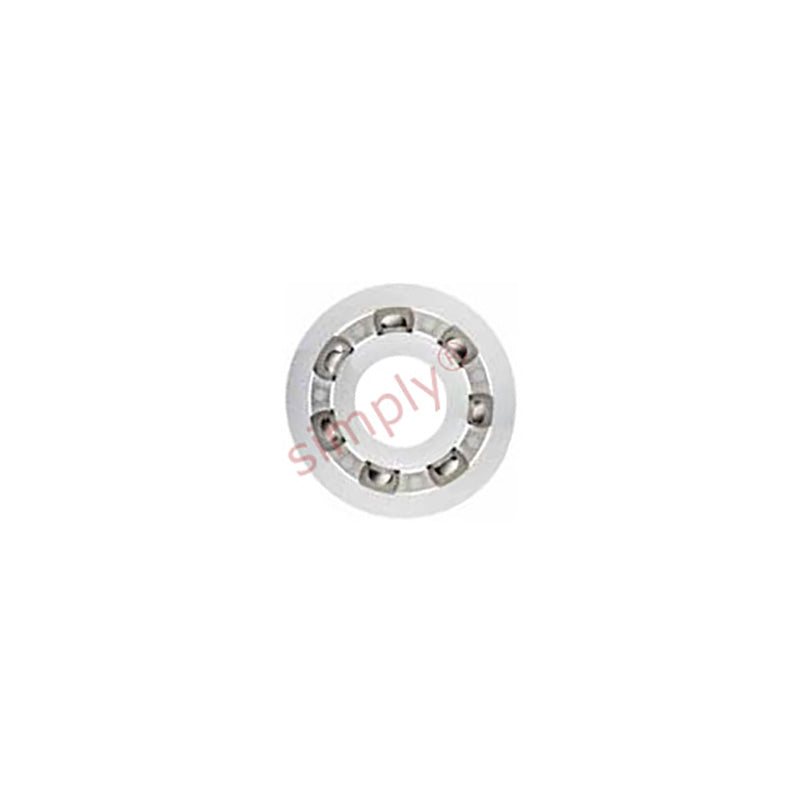

xiros xirodur BB6003B18050ES Open Type FDA compliant Polymer Ball Bearing with PE Cage and Stainless Steel Balls 17x35x10mm - Allow 2-3 Days
xiros xirodur BB6003B18050ES Open Type FDA compliant Polymer Ball Bearing with PE Cage and Stainless Steel Balls 17x35x10mm - Allow 2-3 Days
Out of stock
Description
Description
|
IGUS xiros® xirodur® B180 Polymer Ball Bearings for the Food Sector: These open type radial deep groove ball bearings consist of polymer cages and stainless steel balls. They are for use with temperatures up to +80 deg C. The specially developed material xirodur® B180 provides significantly longer life times at a lower cost. These bearings are made from FDA-compliant materials making these bearings ideal for the food industry. Benefits: Raceways and cages made of FDA approved plastics, lubrication- and maintenance-free, washable. |
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 10mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d1 | 17mm |
|---|---|
| d2 | 35mm |
| b | 10mm |
| Max static axial load | 360 N |
| Static load capacity | 180 N |
| Dynamic load capacity | 250 N |
| Max speed | 1400 rpm |
| Race | B180 |
| Cage | PE |
| Ball material | Stainless Steel |
