SKU: BB-6002-A500-10-ES

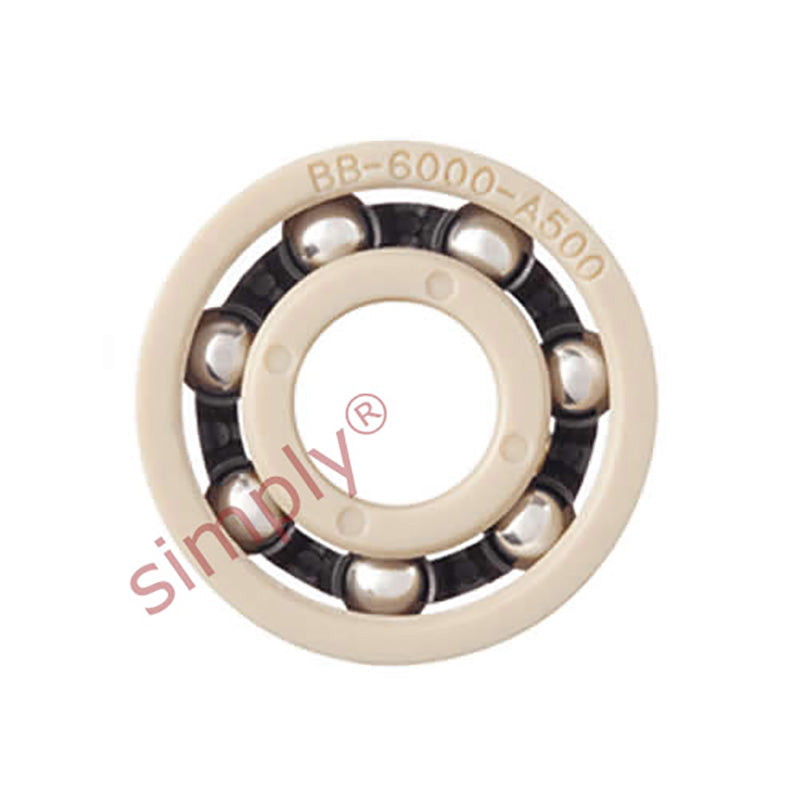

xiros xirodur BB6002A50010ES Open Type Polymer Ball Bearing with PA Cage and Stainless Steel Balls 15x32x9mm - Allow 2-3 Days
xiros xirodur BB6002A50010ES Open Type Polymer Ball Bearing with PA Cage and Stainless Steel Balls 15x32x9mm - Allow 2-3 Days
Out of stock
Description
Description
|
IGUS xiros® xirodur® A500 Polymer Ball Bearings: These open type radial deep groove ball bearings consist of PA cages and stainless steel balls. These bearings are suitable for high temperatures up to +150 deg C. These bearings are the economic alternative in the xirodur® A500 range, when only a temperature resistance up to +150 deg C is required and no checmicals are used. Benefits: Lubrication- and maintenance-free, corrosion-resistant, non-magnetic, washable, high-temperature range, electrically insulating. |
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 32mm
- Width:
- 9mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Temperature Range:
- High Temp
Technical
Technical
| d1 | 15mm |
|---|---|
| d2 | 32mm |
| b1 | 9mm |
| Max static axial load | 440 N |
| Static load capacity | 161 N |
| Dynamic load capacity | 168 N |
| Max speed | 1900 rpm |
| Race | A500 |
| Cage | PA |
| Ball material | Stainless Steel |
