SKU: B-1320

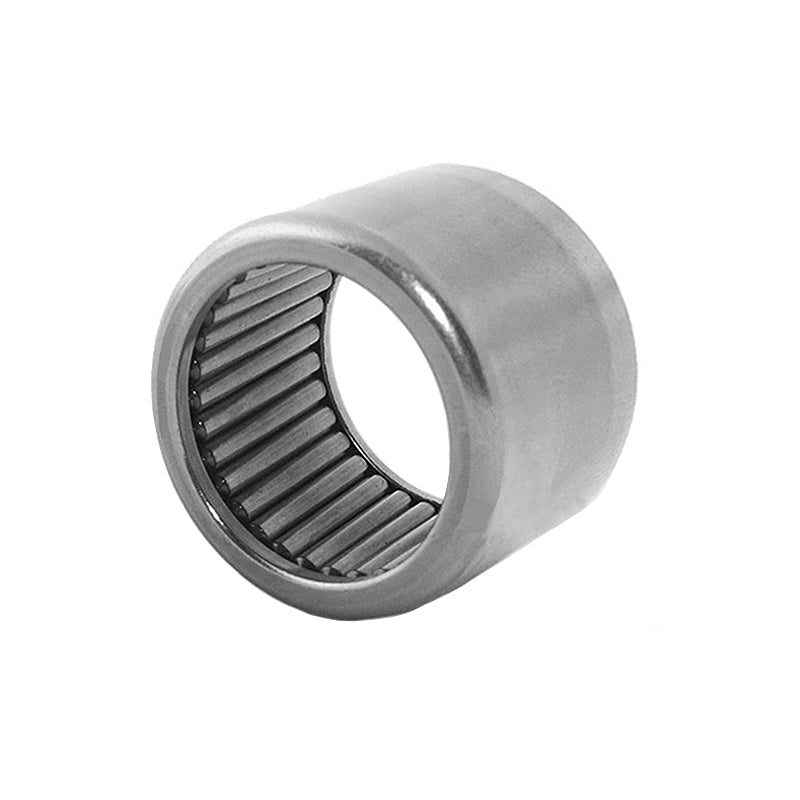

Major Brand B1320 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 13/16x1-1/16x1-1/4 inch
Major Brand B1320 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 13/16x1-1/16x1-1/4 inch
Out of stock
Description
Description
Full Complement Needle Roller Bearings: Of similar construction to the common HK and TA series needle roller bearings but having no cage and twice the number of rollers occupying the same space to permit greater load carrying capacity. Often referred to as crowded roller construction. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20.64mm = 0.813 (13/16) inch
- Outside Diameter:
- 26.99mm = 1.063 (1-1/16) inch
- Width:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Inside Diameter | 20.64mm = 0.8125 inch |
|---|---|
| Outside Diameter | 26.99mm = 1.0625 inch |
| Width | 31.75mm = 1.25 inch |
| Dynamic load C | 37.3 kN |
| Static load Co | 78.3 kN |
| S max | 20.638mm = 0.8125 inch |
| S min | 20.625mm = 0.812 inch |
| H max | 27mm = 1.063 inch |
| H min | 26.975mm = 1.062 inch |
