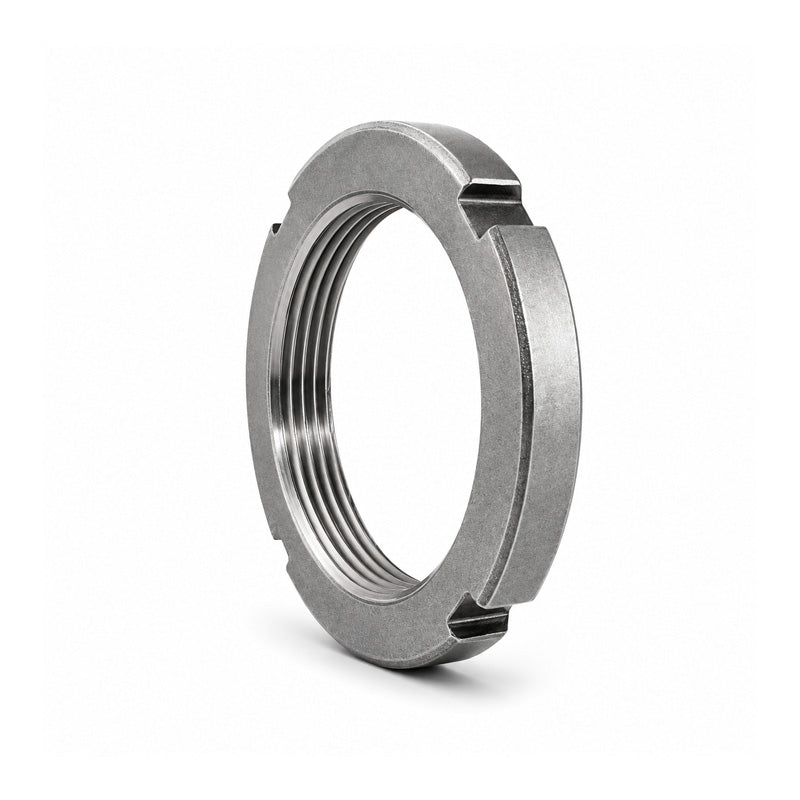

SKF AN34 Lock Nut (Lock Washer Type) 6.659x8.031x8.661 inch
SKF AN34 Lock Nut (Lock Washer Type) 6.659x8.031x8.661 inch
Out of stock
Share this product
Description
Description
SKF Lock Nuts: Supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts and facilitate the mounting of tapered bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- 6.659 inch
Technical
Technical
| G | 6.659 inch |
|---|---|
| Threads per inch | 8 |
| d<sub>1</sub> | 8.031 inch |
| d<sub>3</sub> max | 8.661 inch |
| B | 1.073 inch |
| b | 0.61 inch |
| h | 0.291 inch |
| Static axial load carrying capacity | 143878 lbf |
| Mass | 3.2069 kg |
| Associated spanner | TMFN30-40 |
| Associated locking device | W34 |
