SKU: AN32-SKF

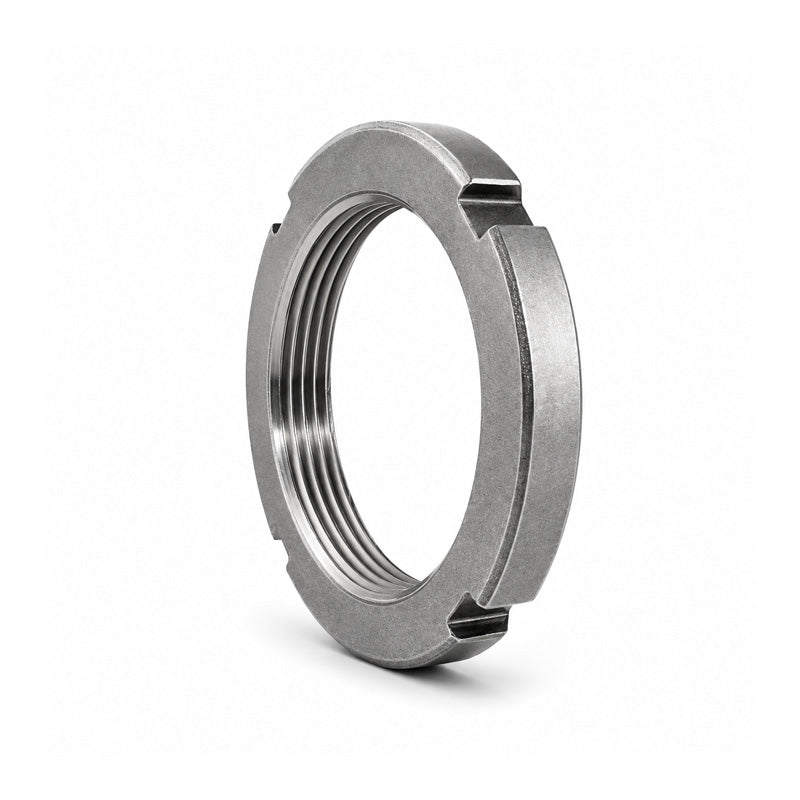

SKF AN32 Lock Nut (Lock Washer Type) 6.284x7.438x8.068 inch
SKF AN32 Lock Nut (Lock Washer Type) 6.284x7.438x8.068 inch
Out of stock
Share this product
Description
Description
SKF Lock Nuts: Supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts and facilitate the mounting of tapered bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- 6.284 inch
Technical
Technical
| G | 6.284 inch |
|---|---|
| Threads per inch | 8 |
| d<sub>1</sub> | 7.438 inch |
| d<sub>3</sub> max | 8.068 inch |
| B | 1.041 inch |
| b | 0.61 inch |
| h | 0.291 inch |
| Static axial load carrying capacity | 125893 lbf |
| Mass | 2.5764 kg |
| Associated spanner | TMFN30-40 |
| Associated locking device | W32 |
