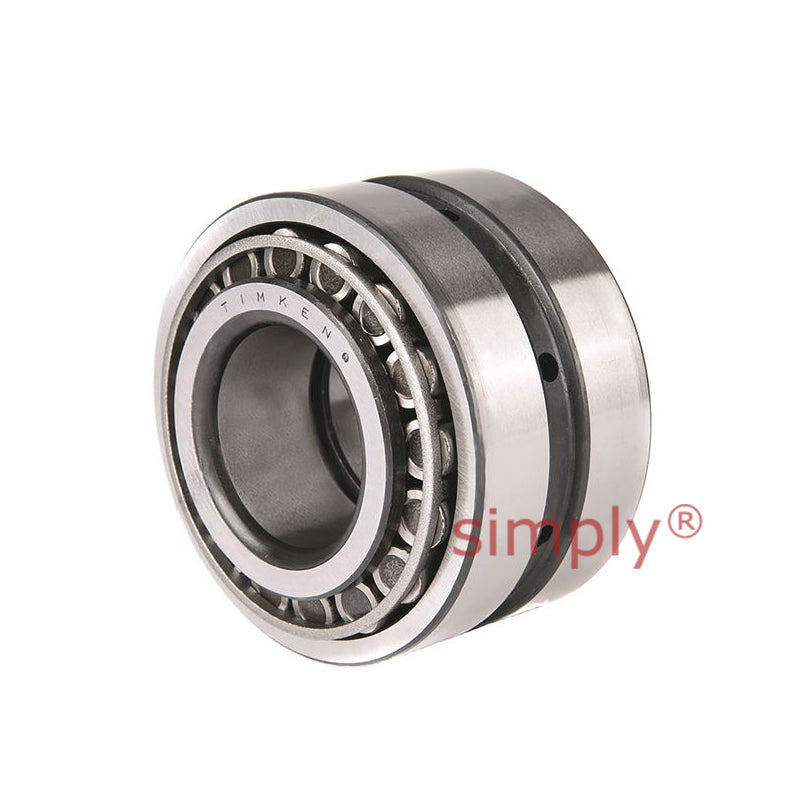

Timken 863X/854DC/X1S863X TDO Double Outer Race Taper Roller Bearing 3.937x7.5x5x4 inch

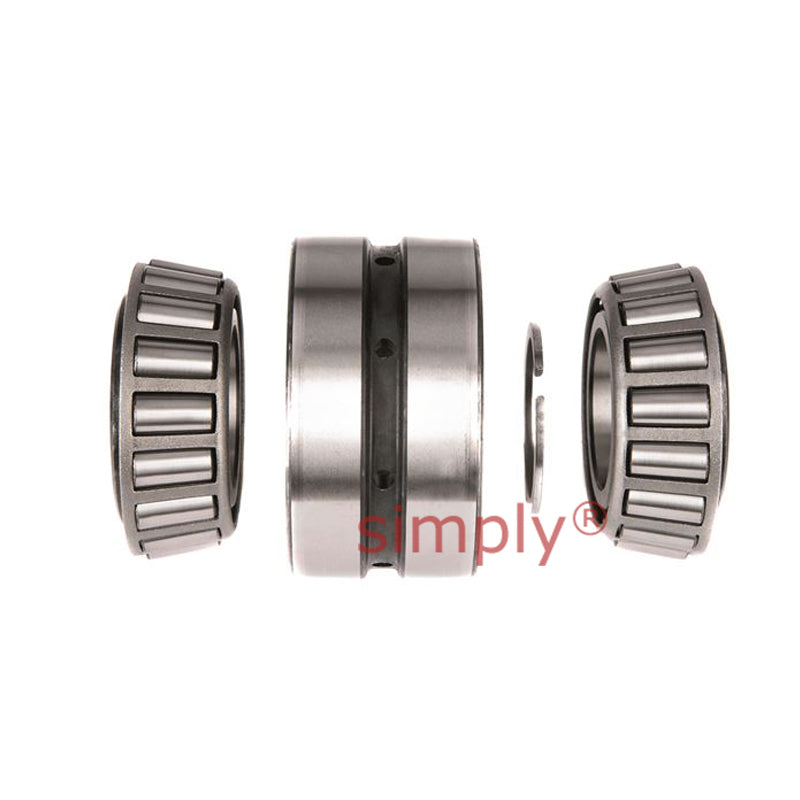

Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:

Timken - High Quality

Inside Diameter:

100.00mm = 3.937 inch

Outside Diameter:

190.50mm = 7.5 inch

Width:

127.00mm = 5 inch
