SKU: 8026-FAG

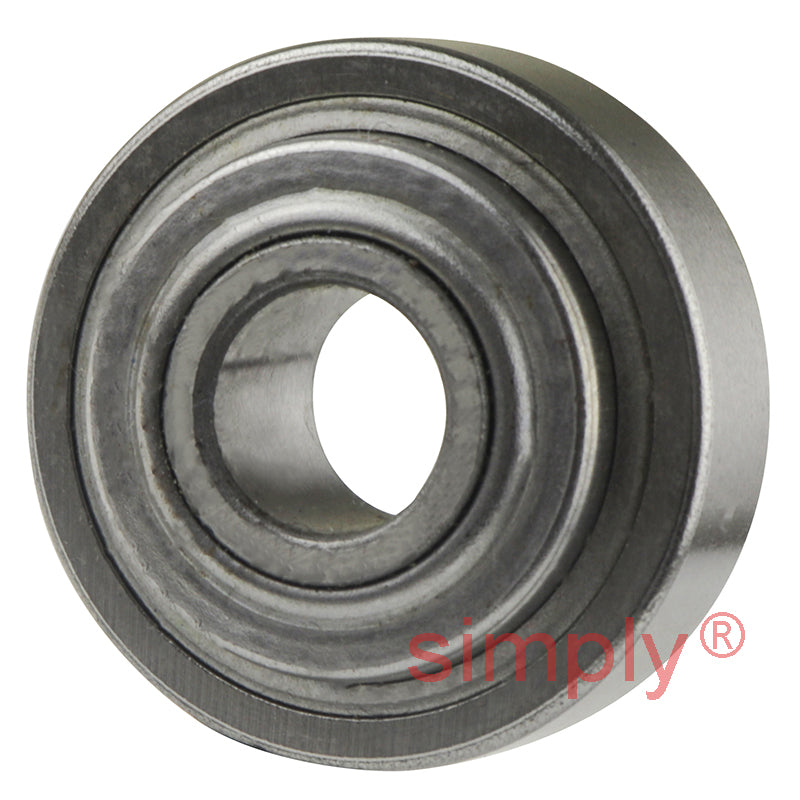

FAG 8026 Deep Groove Ball Bearing with Extended Inner Ring Felt Front Seal No Back Seal 26x52x15.88mm
FAG 8026 Deep Groove Ball Bearing with Extended Inner Ring Felt Front Seal No Back Seal 26x52x15.88mm
Out of stock
Description
Description
|
Specialist Ball bearings: These bearings consist of chrome steel ball bearings and raceways with an extended inner raceways, additionally the inner raceway is recessed on the back of the bearing. Please refer to the technical tab for dimensions. Benefits: Felt / Metal shielded on the front, extended inner race |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 26mm
- Outside Diameter:
- 52mm
- Width:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical

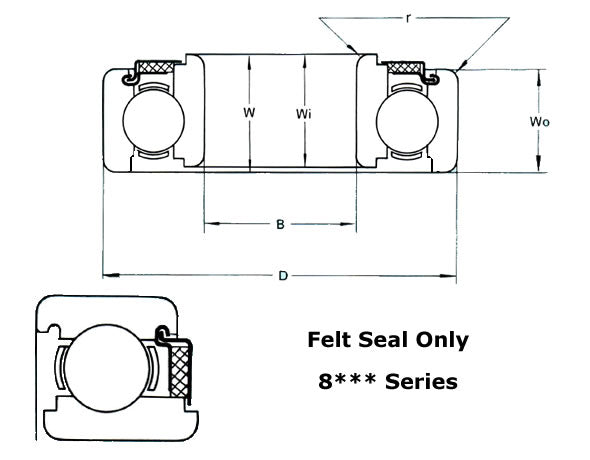

| B | 26mm = 1.0236 inch |
|---|---|
| D | 52mm = 2.0472 inch |
| W | 15.88mm = 0.625 inch |
| Tolerance +0.0000 to minus | 0.0004 inch |
| Wo | 0.591 inch |
| Wi | 0.6 inch |
| r | 0.04 inch |
| No. of balls | 9 |
| Ball diameter | 5/16 inch |
| Static load | 1100 kN |
| Dynamic load | 709 kN |
| Weight | 0.127 kg |
