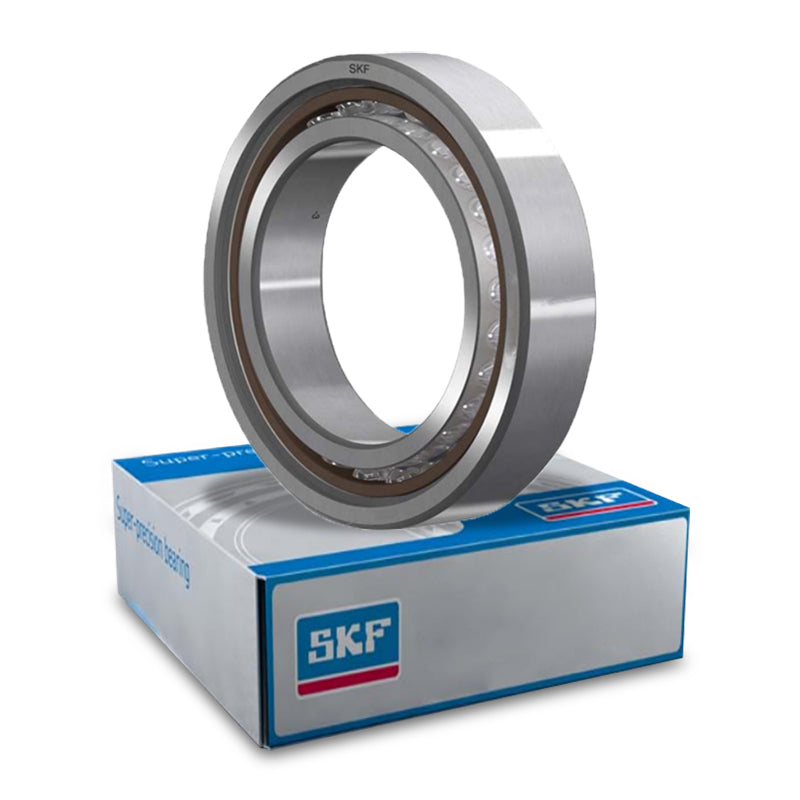

SKF 71934ACD/P4A Super Precision Angular Contact Spindle Bearing 170x230x28mm

SKF Super Precision Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load-bearing capacity. Note: Load is applied in the direction of the inner raceways largest diameter (one side will be smaller than the other in diameter), in smaller bearings, this is difficult to check, in these cases, the thrust is applied from the side where the bearing number markings are not present.
In these bearings, the raceways and balls are manufactured with chromium steel.
Please contact our Sales Support team if you need to check the specification before purchase.

Brand / Quality:

SKF - High Quality

Inside Diameter:

170mm

Outside Diameter:

230mm

Width:

28mm

Seals / Shields:

None

Style:

Single Row Angular Contact Spindle Bearing

Contact Angle:

25 Degree contact angle
