SKU: 6910-ZZE-NACHI

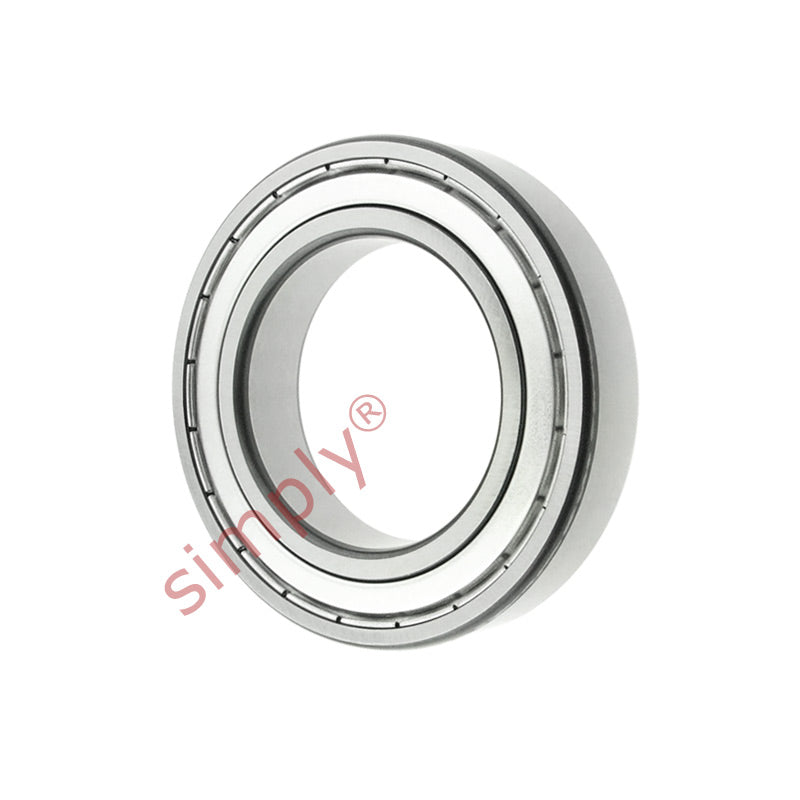

NACHI 6910ZZE Thin Section Metal Shielded Deep Groove Ball Bearing 50x72x12mm
NACHI 6910ZZE Thin Section Metal Shielded Deep Groove Ball Bearing 50x72x12mm
Equivalent to: 6910ZZ 69102Z 6910.2Z 6910KDD 6910DD 69102ZR 6910FF 61910ZZE 61910ZZ 619102Z 61910.2Z 61910KDD 61910DD 619102ZR 61910FF
Out of stock
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 72mm
- Width:
- 12mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 50mm |
|---|---|
| Outside Diameter D | 72mm |
| Width B | 12mm |
| Min radius r | 0.6mm |
| Dynamic load | 14500 kN |
| Static load | 11700 kN |
| Max speed | 9500 rpm |
| da min | 54mm |
| Da max | 68mm |
| ra max | 0.6mm |
| Weight | 0.125 kg |
