SKU: 6907-ZZE/C3-NACHI

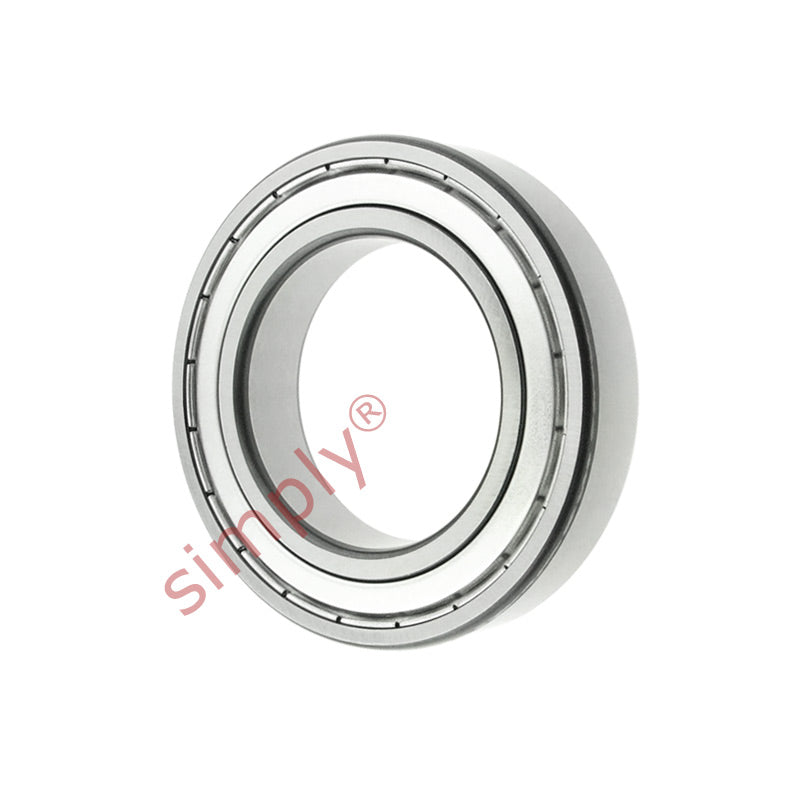

NACHI 6907ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 35x55x10mm
NACHI 6907ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 35x55x10mm
Equivalent to: 6907ZZC3 69072ZC3 6907.2ZC3 6907KDDC3 6907DDC3 69072ZRC3 6907FFC3 61907ZZEC3 61907ZZC3 619072ZC3 61907.2ZC3 61907KDDC3 61907DDC3 619072ZRC3 61907FFC3
Out of stock
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 55mm
- Width:
- 10mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 35mm |
|---|---|
| Outside Diameter D | 55mm |
| Width B | 10mm |
| Min radius r | 0.6mm |
| Dynamic load | 10400 kN |
| Static load | 7150 kN |
| Max speed | 12000 rpm |
| da min | 39mm |
| Da max | 51mm |
| ra max | 0.6mm |
| Weight | 0.073 kg |
