SKU: 6812-ZZ/C3-NACHI

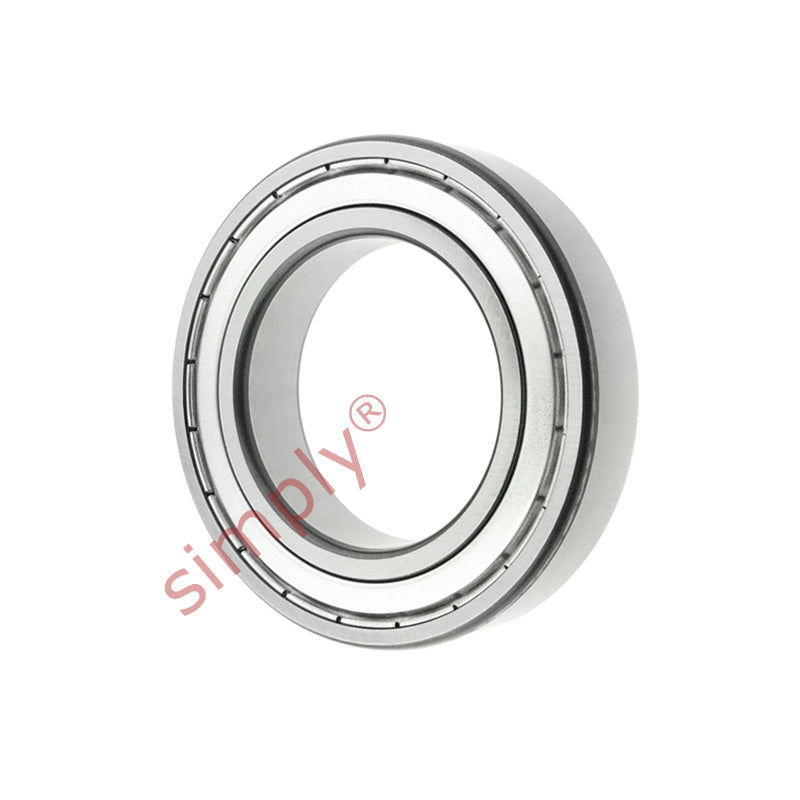

NACHI 6812ZZC3 Thin Section Metal Shielded Deep Groove Ball Bearing 60x78x10mm
NACHI 6812ZZC3 Thin Section Metal Shielded Deep Groove Ball Bearing 60x78x10mm
Equivalent to: 6812ZZEC3 68122ZC3 6812.2ZC3 6812KDDC3 6812DDC3 68122ZRC3 6812FFC3 61812ZZEC3 61812ZZC3 618122ZC3 61812.2ZC3 61812KDDC3 61812DDC3 618122ZRC3 61812FFC3
Out of stock
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 78mm
- Width:
- 10mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 60mm |
|---|---|
| Outside Diameter D | 78mm |
| Width B | 10mm |
| Min radius r | 0.3mm |
| Dynamic load | 11500 kN |
| Static load | 10600 kN |
| Max speed | 8000 rpm |
| da min | 62mm |
| Da max | 76mm |
| ra max | 0.3mm |
| Weight | 0.106 kg |
