SKU: 6810-2NSE/C3-NACHI

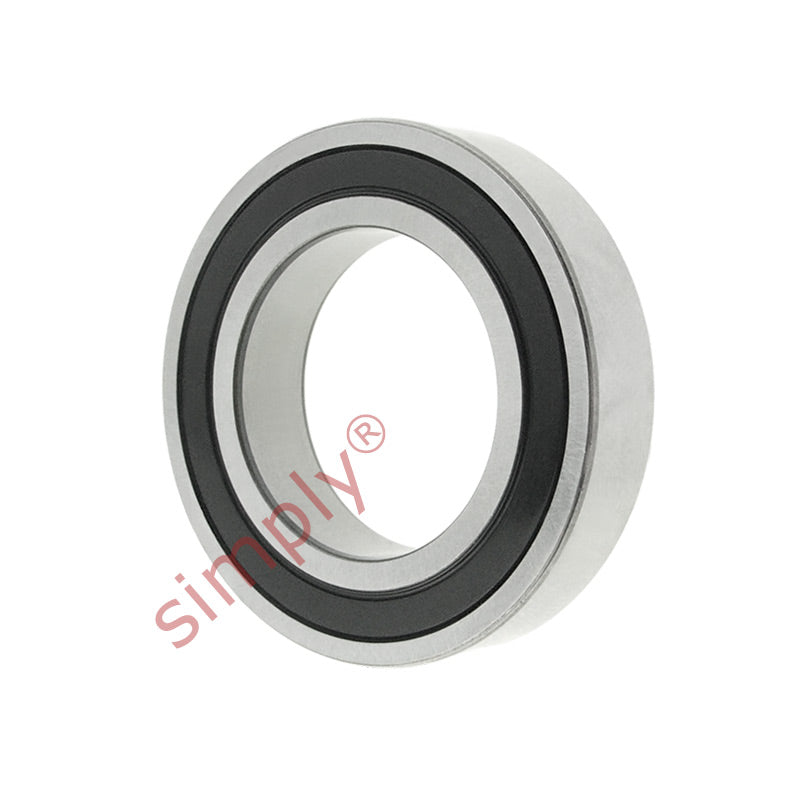

NACHI 68102NSEC3 Thin Section Contact Rubber Sealed Deep Groove Ball Bearing 50x65x7mm
NACHI 68102NSEC3 Thin Section Contact Rubber Sealed Deep Groove Ball Bearing 50x65x7mm
Equivalent to: 6810NSEC3 6810DUC3 6810RSC3 6810RSHC3 6810PC3 6810RSRC3 6810LUC3 61810NSEC3 61810DUC3 61810RSC3 61810RSHC3 61810PC3 61810RSRC3 61810LUC3 6810DDUC3 68102RSC3 68102RS1C3 68102RSHC3 6810PPC3 68102RSRC3 6810LLUC3 618102NSEC3 61810DDUC3 618102RSC3 618102RS1C3 618102RSHC3 61810PPC3 618102RSRC3 61810LLUC3
Out of stock
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 65mm
- Width:
- 7mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 50mm |
|---|---|
| Outside Diameter D | 65mm |
| Width B | 7mm |
| Min radius r | 0.3mm |
| Dynamic load | 6400 kN |
| Static load | 5800 kN |
| Max speed | 10000 rpm |
| da min | 52mm |
| Da max | 63mm |
| ra max | 0.3mm |
| Weight | 0.052 kg |
