SKU: 6805-ZZE/C3-NACHI

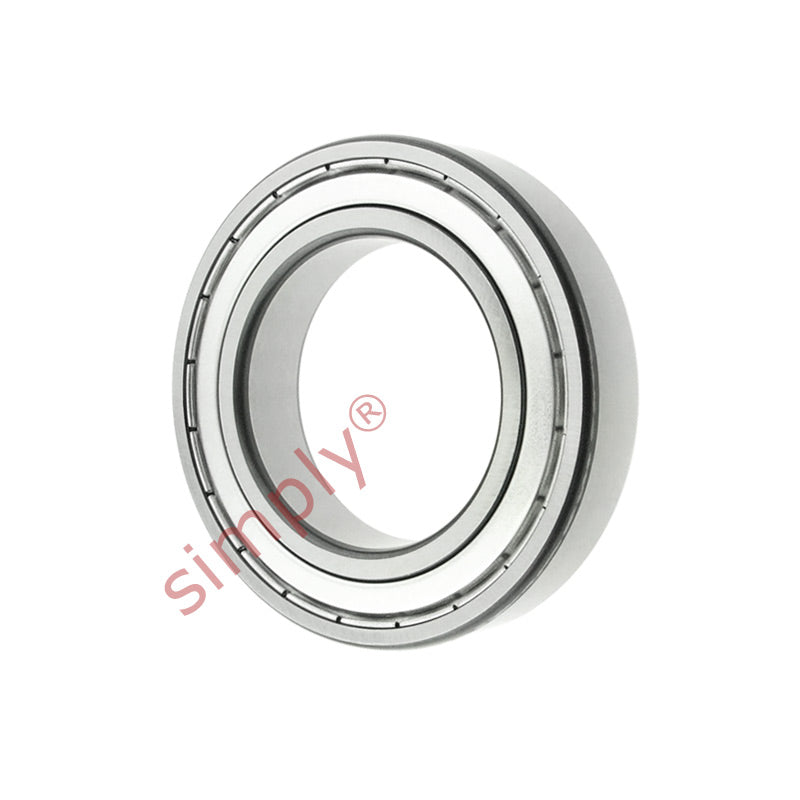

NACHI 6805ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 25x37x7mm
NACHI 6805ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 25x37x7mm
Equivalent to: 6805ZZC3 68052ZC3 6805.2ZC3 6805KDDC3 6805DDC3 68052ZRC3 6805FFC3 61805ZZEC3 61805ZZC3 618052ZC3 61805.2ZC3 61805KDDC3 61805DDC3 618052ZRC3 61805FFC3
Out of stock
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 37mm
- Width:
- 7mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 25mm |
|---|---|
| Outside Diameter D | 37mm |
| Width B | 7mm |
| Min radius r | 0.3mm |
| Dynamic load | 4300 kN |
| Static load | 2940 kN |
| Max speed | 18000 rpm |
| da min | 27mm |
| Da max | 35mm |
| ra max | 0.3mm |
| Weight | 0.022 kg |
