SKU: 6801-2NKE/C3-NACHI

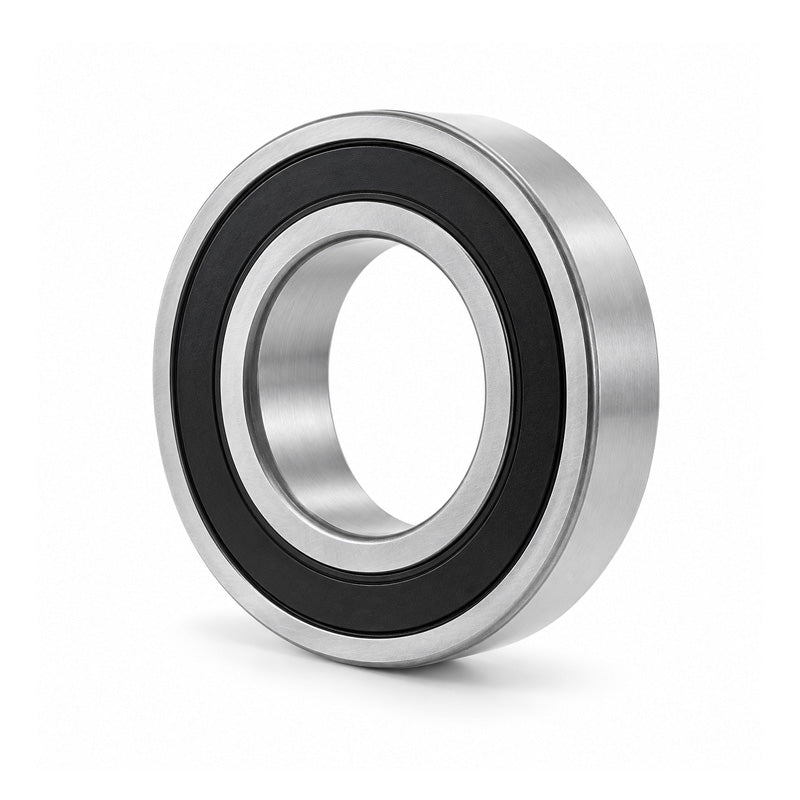

NACHI 68012NKEC3 Thin Section Non Contact Low Friction Sealed Deep Groove Ball Bearing 12x21x5mm
NACHI 68012NKEC3 Thin Section Non Contact Low Friction Sealed Deep Groove Ball Bearing 12x21x5mm
Equivalent to: 6801NKEC3 618012NKEC3 61801NKEC3
Out of stock
Description
Description
|
NACHI Non-contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two non-contact rubber seals to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation, good grease sealing, good protection against dust, low friction. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 21mm
- Width:
- 5mm
- Seals / Shields:
- Low Friction
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 12mm |
|---|---|
| Outside Diameter D | 21mm |
| Width B | 5mm |
| Min radius r | 0.3mm |
| Dynamic load | 1920 kN |
| Static load | 1040 kN |
| Max speed | 32000 rpm |
| da min | 14mm |
| Da max | 19mm |
| ra max | 0.3mm |
| Weight | 0.006 kg |
