SKU: 66212/66462D/X1S66212-TIM

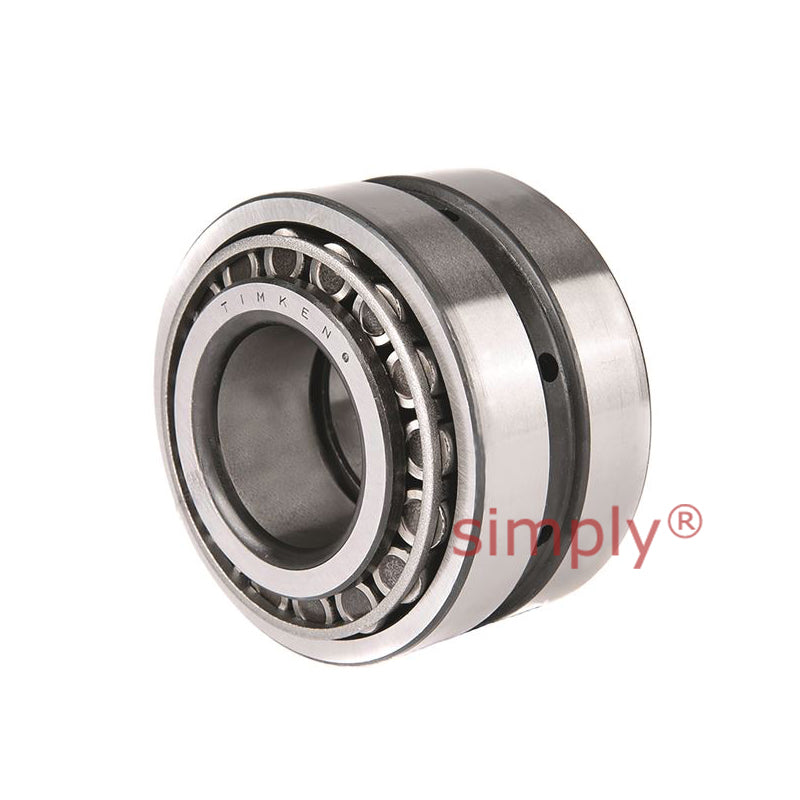

Timken 66212/66462D/X1S66212 TDO Double Outer Race Taper Roller Bearing 2.125x4.625x2.875x2.125 inch
Timken 66212/66462D/X1S66212 TDO Double Outer Race Taper Roller Bearing 2.125x4.625x2.875x2.125 inch
Out of stock
Description
Description

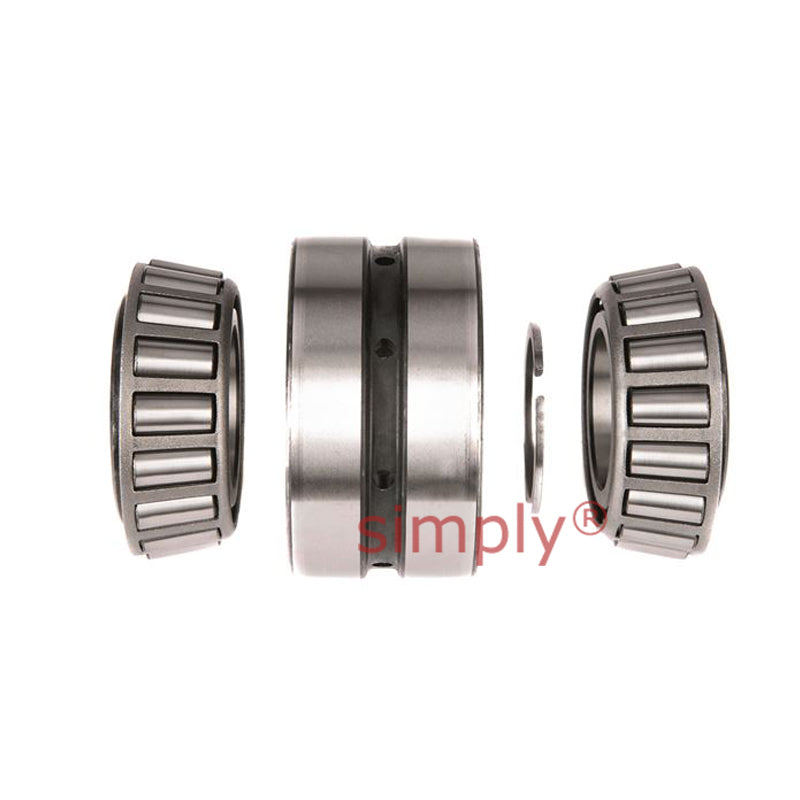

Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 53.98mm = 2.125 inch
- Outside Diameter:
- 117.48mm = 4.625 inch
- Width:
- 73.03mm = 2.875 inch
Technical
Technical
| d | 53.975mm = 2.125 inch |
|---|---|
| D | 117.475mm = 4.625 inch |
| T | 73.025mm = 2.875 inch |
| C | 53.975mm = 2.125 inch |
| Dynamic (1) C1 | 240000N |
| Factors (5) e | 0.63 |
| Factors (5) Y1 | 1.08 |
| Factors (5) Y2 | 1.6 |
| Dynamic (2) C90 | 35800N |
| Dynamic (2) Ca90 | 38300N |
| Dynamic (2) C90(2) | 62300N |
| Factors (5) K | 0.93 |
| Shaft max shaft fillet radius R(3) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter db | 73mm = 2.87 inch |
| Housing max shaft fillet radius r(3) | 0.8mm = 0.03 inch |
| Housing backing shoulder diameter Da | 111mm = 4.37 inch |
| G1 | 50.2 |
| G2 | 16.4 |
| Cg | 0.0751 |
