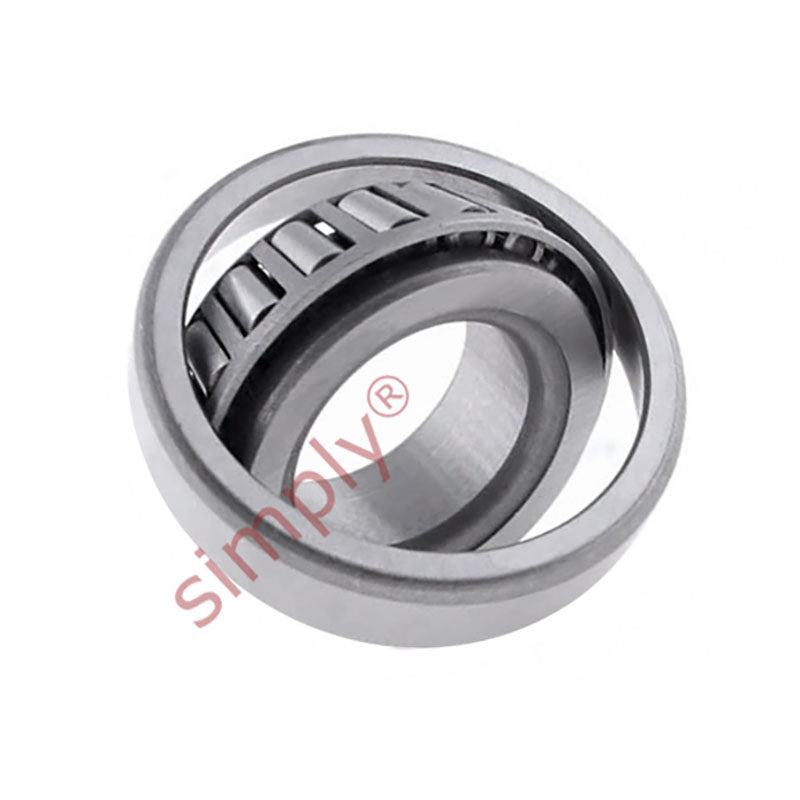

SKF 65390/65320/QCL7C Imperial Taper Roller Bearing 1.9375x4.5x1.75 inches

Name: SKF 65390/65320/QCL7C Imperial Taper Roller Bearing 1.9375x4.5x1.75 inches
Brand: SKF
SKU: 65390/65320/QCL7C-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: SKF - High Quality
Inside Diameter:: 49.21mm = 1.937 (1-15/16) inch
Outside Diameter:: 114.3mm = 4.5 (4-1/2) inch
Width:: 44.45mm = 1.75 (1-3/4) inch
Seals / Shields:: None

Technical

d	49.212mm
D	114.3mm
T	44.45mm
Dynamic load	183 kN
Static load	224 kN
Fatigue load limit Pu	25 kN
Reference speed	4500 rpm
Limiting speed	6700 rpm
Weight	2.2 kg
d1	79.3mm
B	44.45mm
C	34.925mm
r1r2 min	3.5mm
r3r4 min	3.3mm
a	31mm
da max	60mm
db min	60.5mm
Da min	89mm
Da max	103mm
Db min	105mm
Ca min	5mm
Cb min	9.5mm
ra max	3mm
rb max	3mm
Calculation factor e	0.43
Calculation factor Y	1.4
Calculation factor Y0	0.8
