SKU: 6309-2RSR-C3-WT-FAG

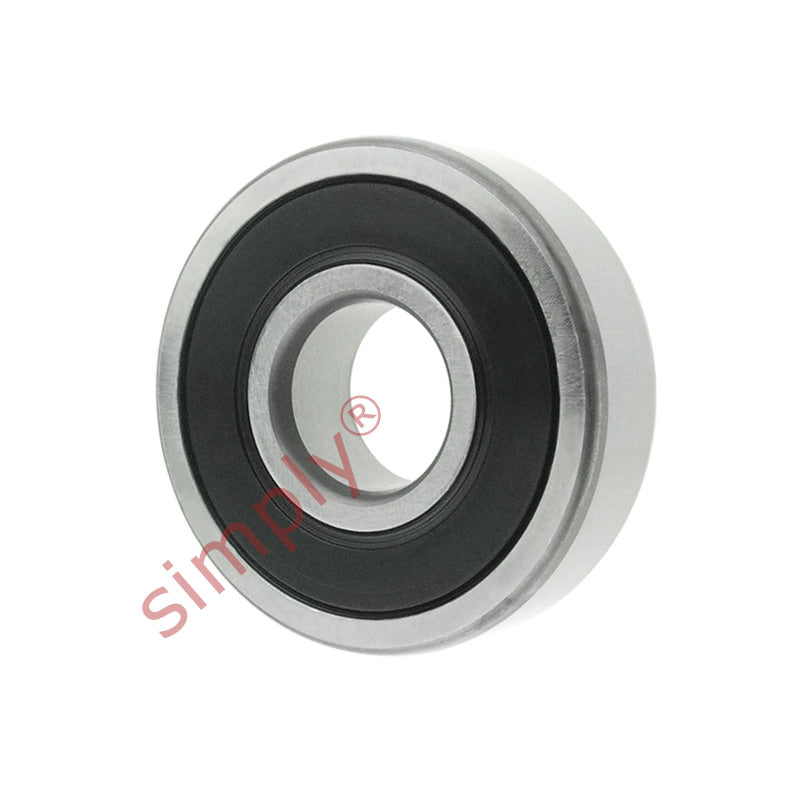

FAG 63092RSRC3WT Rubber Sealed Deep Groove Ball Bearing 45x100x25mm
FAG 63092RSRC3WT Rubber Sealed Deep Groove Ball Bearing 45x100x25mm
Equivalent to: 6309RSC3-WT 63092RSC3-WT 6309DDUC3-WT 6309DUC3-WT
Out of stock
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 25mm |
| Dynamic load C | 55.3 kN |
| Static load Co | 31.5 kN |
| Fatigue load limit Pu | 1.34 kN |
| Reference speed | 15000 rpm |
| Limiting speed | 4500 rpm |
| Mass | 0.83 kg |
| d1 | 62.2mm |
| D2 | 86.7mm |
| r1r2 min | 1.5mm |
| da min | 54 |
