SKU: 6308-M-C4-VL-0241-FAG

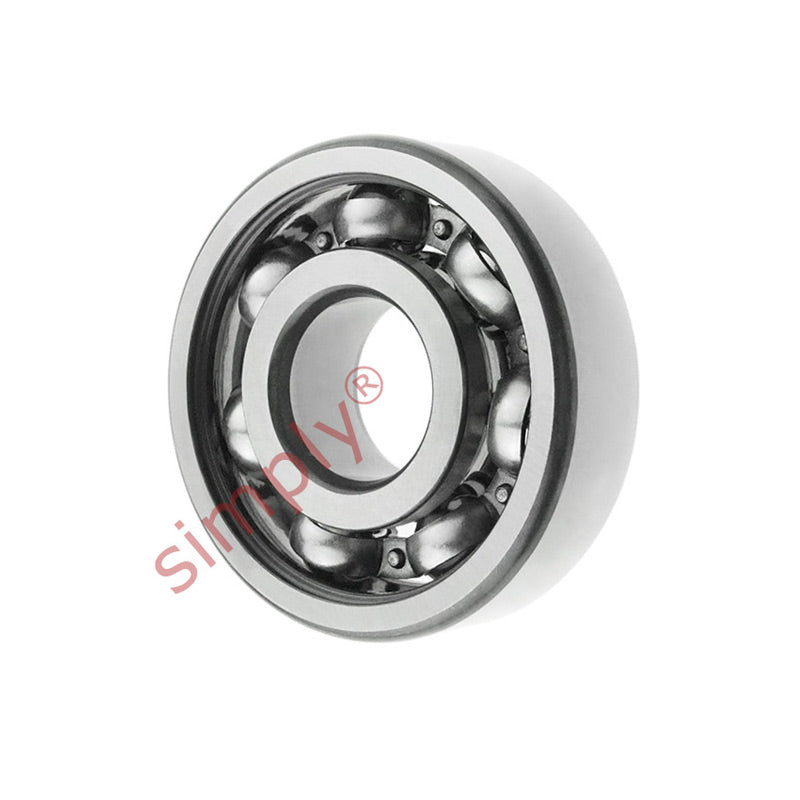

FAG 6308MC4VL0241 Open Deep Groove Ball Bearing 40x90x23mm
FAG 6308MC4VL0241 Open Deep Groove Ball Bearing 40x90x23mm
Equivalent to: 6308MC4/VL0241
Out of stock
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- C4
Technical
Technical
| d | 40mm |
|---|---|
| D | 90mm |
| B | 23mm |
| Dynamic load C | 42.3 kN |
| Static load Co | 24 kN |
| Fatigue load limit Pu | 1.02 kN |
| Reference speed | 17000 rpm |
| Limiting speed | 11000 rpm |
| Mass | 0.63 kg |
| d1 | 56.1mm |
| D1 | 73.8mm |
| D2 | 77.7mm |
| r1r2 min | 1.5mm |
| da min | 49mm |
| Da max | 81mm |
| ra max | 1.5mm |
| Calc factor Kr | 0.03 |
| Calc factor | 13 |
