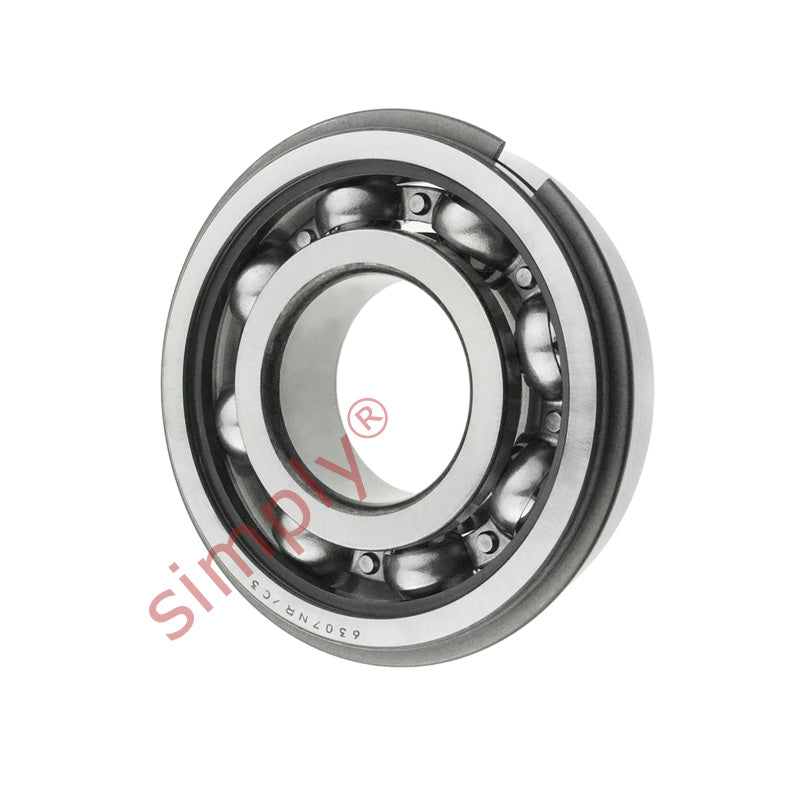

FAG 6307NRC3 Deep Groove Ball Bearing with Snap Ring 35x80x21mm
FAG 6307NRC3 Deep Groove Ball Bearing with Snap Ring 35x80x21mm
Out of stock
Share this product
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 80mm
- Width:
- 21mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 35mm |
|---|---|
| D | 80mm |
| B | 21mm |
| Dyamic load C | 35.1 kN |
| Static load Co | 19 kN |
| Fatigue load limit Pu | 0.82 kN |
| Reference speed | 19000 rpm |
| Limiting speed | 12000 rpm |
| Mass | 0.46 kg |
| d1 | 49.6mm |
| d2 | 65.4mm |
| D2 | 69.2mm |
| r1r2 min | 1.5mm |
| da min | 44 |
