SKU: 6307-2Z/C4VA237-SKF

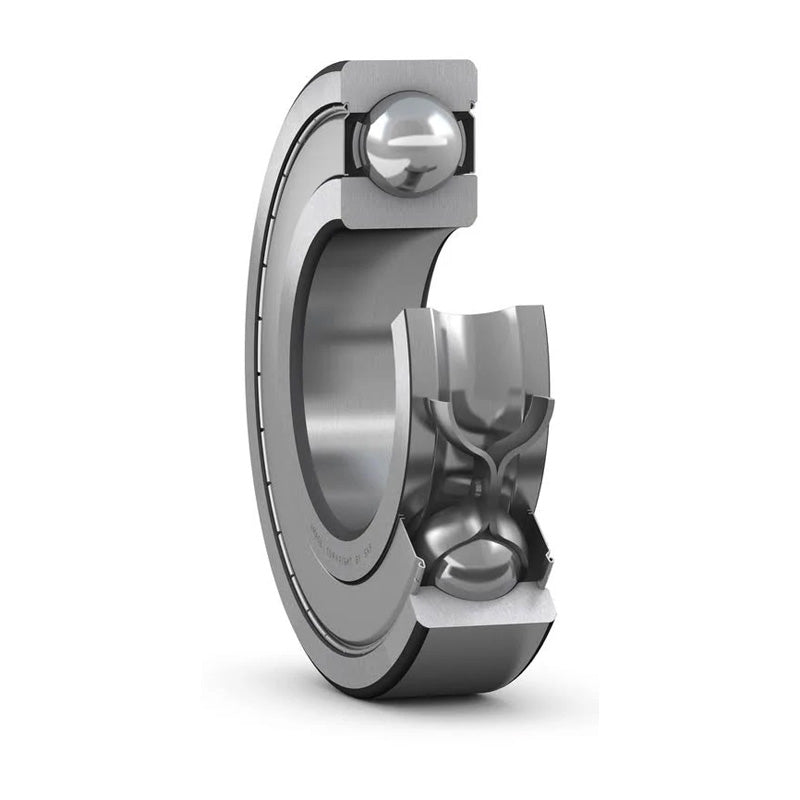

SKF 63072ZC4VA237 Metal Shielded Deep Groove Ball Bearing 35x80x21mm
SKF 63072ZC4VA237 Metal Shielded Deep Groove Ball Bearing 35x80x21mm
Equivalent to: 6307ZZC4VA237 63072Z 63072ZRC4VA237
Out of stock
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 80mm
- Width:
- 21mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C4
Technical
Technical
| d | 35mm |
|---|---|
| D | 80mm |
| B | 21mm |
| Dynamic load C | 35.1 kN |
| Static load Co | 19 kN |
| Fatigue load limit Pu | 0.815 kN |
| Reference speed | 19000 rpm |
| Limiting speed | 9500 rpm |
| Weight | 0.46 kg |
| d1 | 49.6mm |
| D2 | 69.2mm |
| r1r2 min | 1.5mm |
| da min | 44mm |
| Da max | 71mm |
| ra max | 1.5mm |
| Calculation factor kr | 0.03 |
| Calculation factor f0 | 13 |
