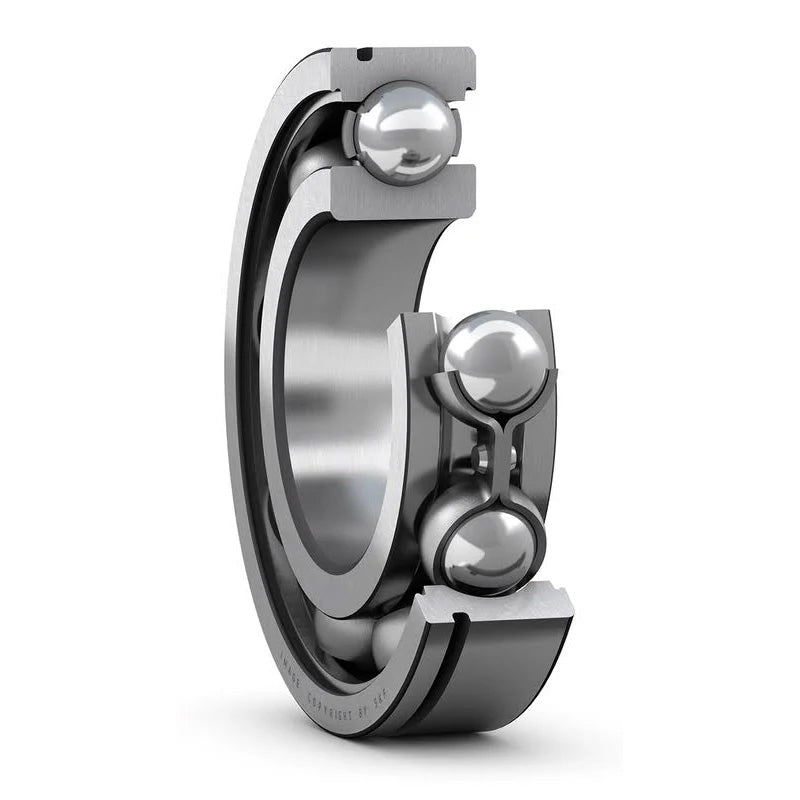

SKF 6220NRC3 Open Type Snap Ring Deep Groove Bearing 100x180x34mm
SKF 6220NRC3 Open Type Snap Ring Deep Groove Bearing 100x180x34mm
Out of stock
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 180mm
- Width:
- 34mm
- Seals / Shields:
- None
- Clearance:
- C3
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 100mm |
|---|---|
| D | 180mm |
| B | 34mm |
| Dynamic load C | 127 kN |
| Static load Co | 93 kN |
| Fatigue load limit Pu | 3.35 kN |
| Reference speed | 7500 rpm |
| Limiting speed | 4800 rpm |
| Weight | 3.15kg |
| Snap ring | SP 180 |
| d1 | 124mm |
| D2 | 160mm |
| D3 | 173.66mm |
| D4 | 192.9mm |
| b | 3.5mm |
| f | 3.1mm |
| C | 5.69mm |
| r1r2 min | 2.1mm |
| ro max | 0.6mm |
| da min | 112mm |
| Da max | 168mm |
| Db min | 195mm |
| ba min | 4mm |
| Ca max | 8.79mm |
| ra max | 2mm |
| Calc Factor kr | 0.025 |
| fo | 14 |
