SKU: 6209-2RS1/C4W64-SKF

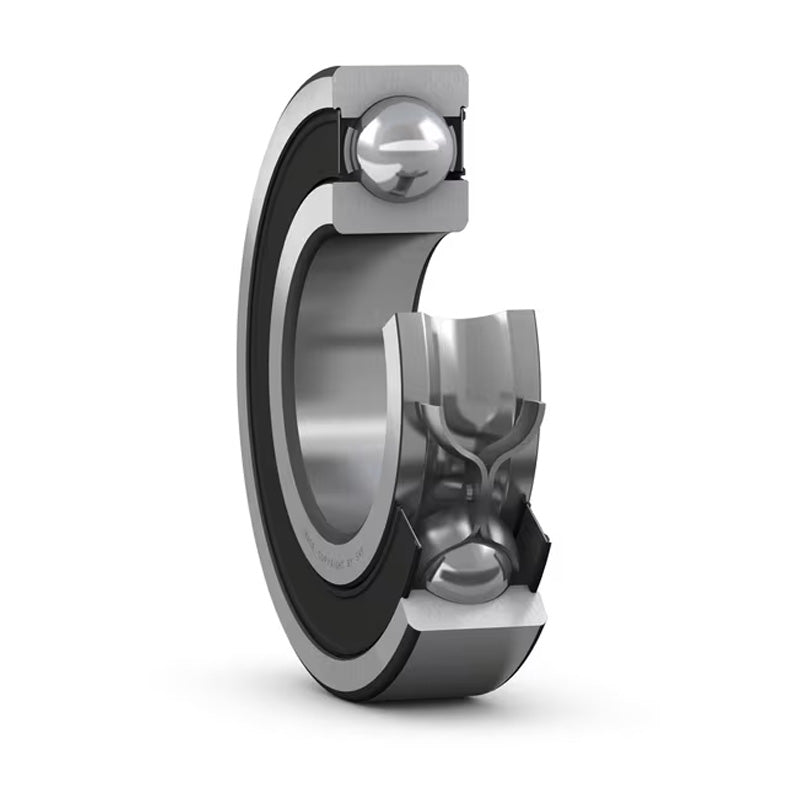

SKF 62092RS1C4W64 Rubber Sealed Deep Groove Ball Bearing 45x85x19mm
SKF 62092RS1C4W64 Rubber Sealed Deep Groove Ball Bearing 45x85x19mm
Out of stock
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 19mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C4
Technical
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| B | 19mm |
| Dynamic load C | 35.1 kN |
| Static load Co | 21.6 kN |
| Fatigue load limit Pu | 0.915 kN |
| Reference speed | 17000 rpm |
| Limiting speed | 5000 rpm |
| Weight | 0.41 kg |
| d1 | 57.6mm |
| D2 | 75.2mm |
| r1r2 min | 1.1mm |
| da min | 52mm |
| Da max | 78mm |
| ra max | 1mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 14 |
