SKU: 62/22-2RS1/C3-SKF

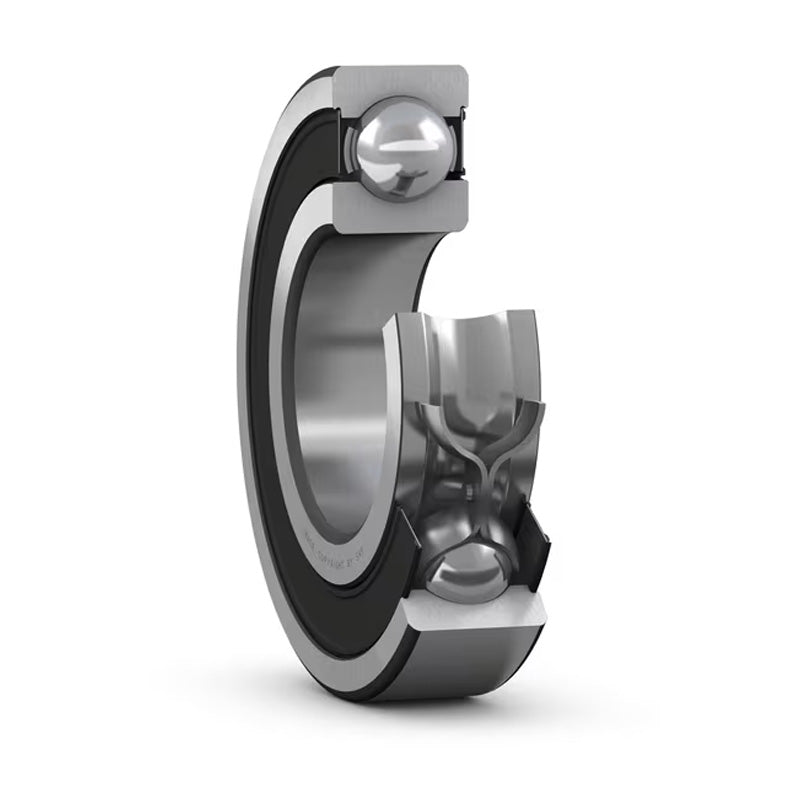

SKF 62/222RS1C3 Rubber Sealed Deep Groove Ball Bearing 22x50x14mm
SKF 62/222RS1C3 Rubber Sealed Deep Groove Ball Bearing 22x50x14mm
Equivalent to: 6222NSEC3 6222DUC3 6222RSC3 6222RSHC3 6222PC3 6222RSRC3 6222LUC3 62222NSEC3 6222DDUC3 62222RSC3 62222RSHC3 6222PPC3 62222RSRC3 6222LLU
Out of stock
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 50mm
- Width:
- 14mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 22mm |
|---|---|
| D | 50mm |
| B | 14mm |
| Dynamic load C | 14 kN |
| Static load Co | 7.65 kN |
| Fatigue load limit Pu | 0.325 kN |
| Reference speed | 30000 rpm |
| Limiting speed | 9000 rpm |
| Weight | 0.12 kg |
| d1 | 32.2mm |
| D2 | 44mm |
| r1r2 min | 1mm |
| da min | 27.6mm |
| da max | 32mm |
| Da max | 44.4mm |
| ra max | 1mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 14 |
