SKU: 61964-MA-FAG

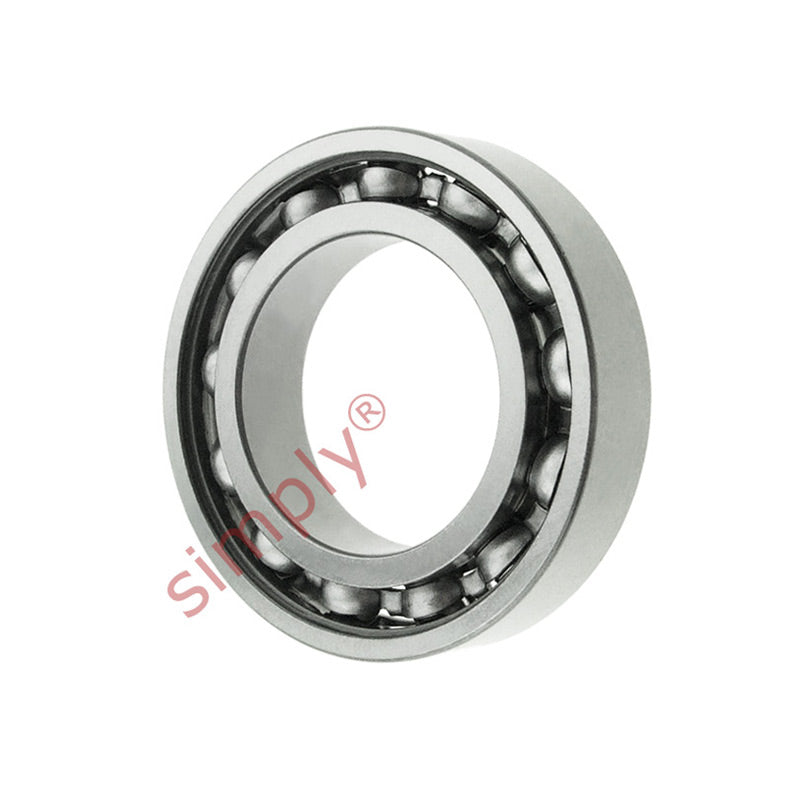

FAG 61964MA Open Thin Section Deep Groove Ball Bearing 320x440x56mm
FAG 61964MA Open Thin Section Deep Groove Ball Bearing 320x440x56mm
Out of stock
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 320mm
- Outside Diameter:
- 440mm
- Width:
- 56mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 320mm |
|---|---|
| D | 440mm |
| B | 56mm |
| Dynamic load C | 276 kN |
| Static load Co | 400 kN |
| Fatigue load limit Pu | 8.65 kN |
| Reference speed | 2800 rpm |
| Limiting speed | 2400 rpm |
| Mass | 25.5 kg |
| d1 | 358mm |
| D1 | 402mm |
| D2 | 3mm |
| r1r2 min | 333mm |
| da min | 427mm |
| Da max | 2.5mm |
| ra max | 0.02mm |
| Calc factor Kr | 16 |
| Calc factor | N/A |
