SKU: 61922-MA-C3-FAG

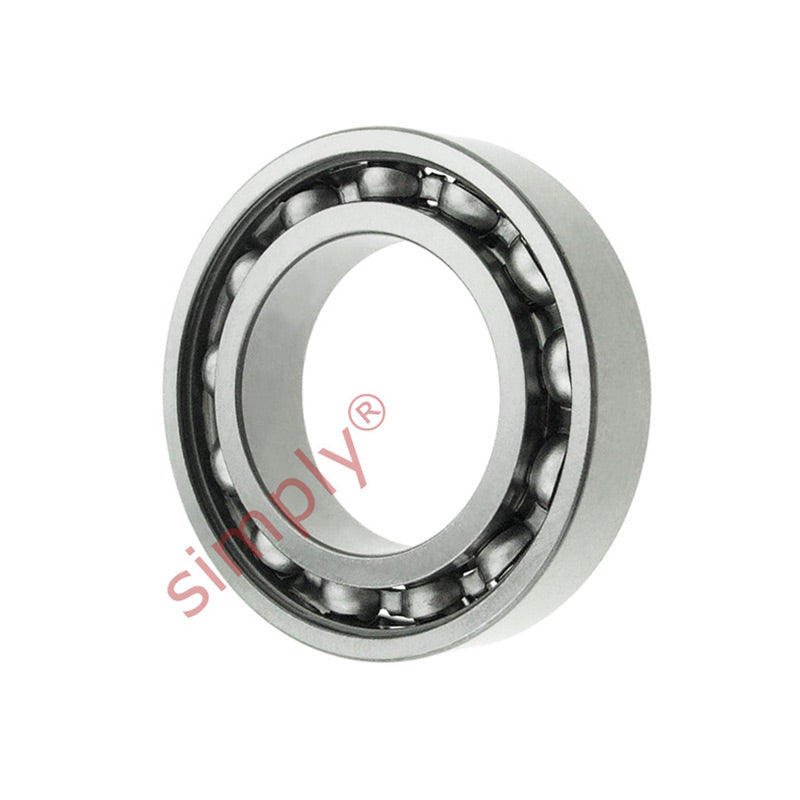

FAG 61922MAC3 Open Thin Section Deep Groove Ball Bearing 110x150x20mm
FAG 61922MAC3 Open Thin Section Deep Groove Ball Bearing 110x150x20mm
Out of stock
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 150mm
- Width:
- 20mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 110mm |
|---|---|
| D | 150mm |
| B | 20mm |
| Dynamic load C | 43.6 kN |
| Static load Co | 45 kN |
| Fatigue load limit Pu | 1.66 kN |
| Reference speed | 9000 rpm |
| Limiting speed | 5600 rpm |
| Mass | 0.9 kg |
| d1 | 123mm |
| D1 | 137mm |
| r1r2 min | 1.1mm |
| da min | 116mm |
| Da max | 144mm |
| ra max | 1mm |
| Calc factor Kr | 0.02 |
| Calc factor | 17 |
