SKU: 61916-2RS1/C3-SKF

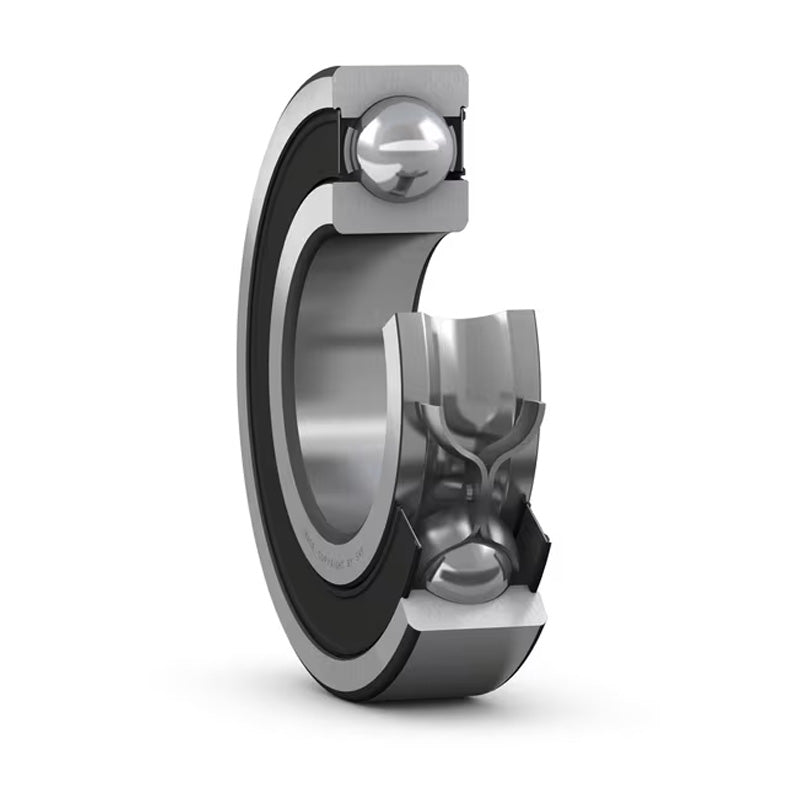

SKF 619162RS1C3 Rubber Sealed Thin Section Deep Groove Ball Bearing 80x110x16mm
Equivalent to: 61916NSEC3 61916DUC3 61916RSC3 61916RSHC3 61916PC3 61916RSRC3 61916LUC3 6916NSEC3 6916DUC3 6916RSC3 6916RSHC3 6916PC3 6916RSRC3 6916LUC3 619162NSEC3 61916DDUC3 619162RSC3 619162RSHC3 61916PPC3 619162RSRC3 61916LLU 69162NSEC3 6916DDUC3 69162RSC3 69162RS1C3 69162RSHC3 6916PPC3 69162RSRC3 6916LLUC3
Out of stock
Description
|
Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 110mm
- Width:
- 16mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 80mm |
|---|---|
| D | 110mm |
| B | 16mm |
| Dynamic load C | 25.1 kN |
| Static load Co | 20.4 kN |
| Fatigue load limit Pu | 1.02 kN |
| Reference speed | 12000 rpm |
| Limiting speed | 3400 rpm |
| Weight | 0.4 kg |
| d1 | 89.8mm |
| d2 | 102mm |
| r1r2 min | 1mm |
| da min | 84.6mm |
| Da max | 105mm |
| ra max | 1mm |
| Calculation factor kr | 0.02 |
| Calculation factor f0 | 14 |
