SKU: 61813-2RS1/C3-SKF

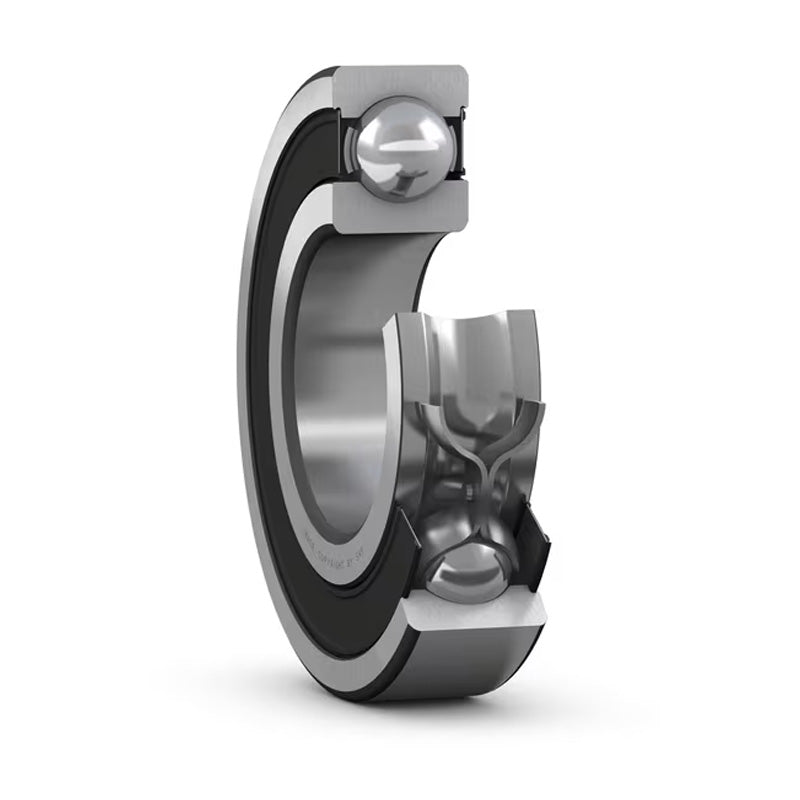

SKF 618132RS1C3 Rubber Sealed Thin Section Deep Groove Ball Bearing 65x85x10mm
Equivalent to: 61813NSEC3 61813DUC3 61813RSC3 61813RSHC3 61813PC3 61813RSRC3 61813LUC3 6813NSEC3 6813DUC3 6813RSC3 6813RSHC3 6813PC3 6813RSRC3 6813LUC3 618132NSEC3 61813DDUC3 618132RSC3 618132RSHC3 61813PPC3 618132RSRC3 61813LLU 68132NSEC3 6813DDUC3 68132RSC3 68132RS1C3 68132RSHC3 6813PPC3 68132RSRC3 6813LLUC3
Out of stock
Description
|
Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 85mm
- Width:
- 10mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 65mm |
|---|---|
| D | 85mm |
| B | 10mm |
| Dynamic load C | 12.4 kN |
| Static load Co | 12.7 kN |
| Fatigue load limit Pu | 0.54 kN |
| Reference speed | 16000 rpm |
| Limiting speed | 4500 rpm |
| Weight | 0.13 kg |
| d1 | 71.6mm |
| D2 | 80.5mm |
| r1r2 min | 0.6mm |
| da min | 68.2mm |
| Da max | 81.8mm |
| ra max | 0.6mm |
| Calculation factor kr | 0.015 |
| Calculation factor f0 | 17 |
