SKU: 61812-2RS1/C3-EU

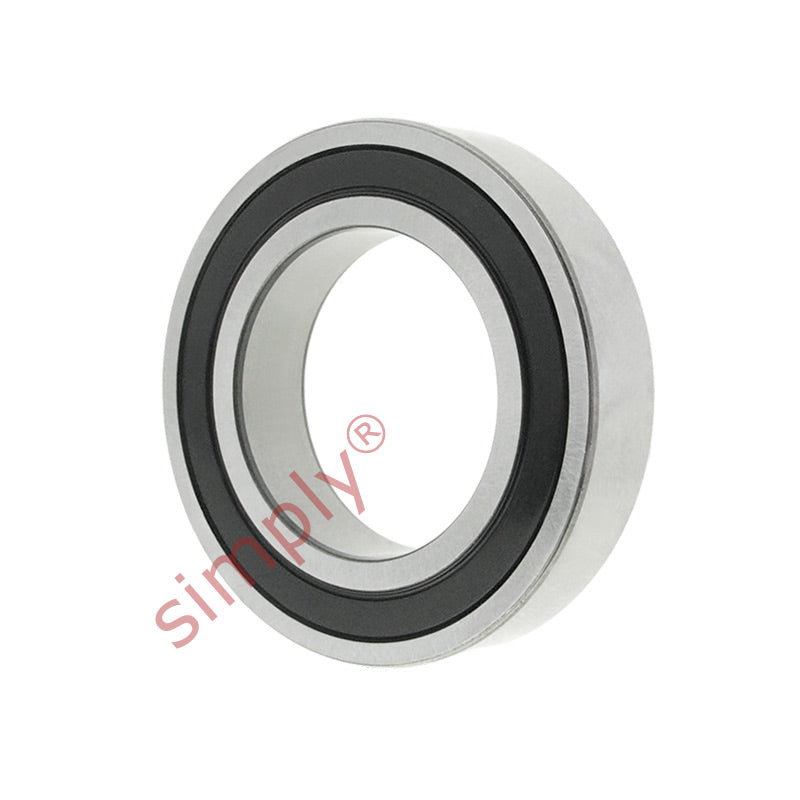

68122RS Budget Rubber Sealed Thin Section Deep Groove Ball Bearing 60x78x10mm
Equivalent to: 61812NSEC3 61812DUC3 61812RSC3 61812RSHC3 61812PC3 61812RSRC3 61812LUC3 6812NSEC3 6812DUC3 6812RSC3 6812RSHC3 6812PC3 6812RSRC3 6812LUC3 618122NSEC3 61812DDUC3 618122RSC3 618122RSHC3 61812PPC3 618122RSRC3 61812LLUC3 618122RSC3 618122RSC3 618122RS2C3 618122RS1C3 618122RSHC3
Out of stock
Share this product
Description
|
Budget Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 78mm
- Width:
- 10mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 60mm |
|---|---|
| D | 78mm |
| B | 10mm |
| r min | 0.3mm |
| Dynamic load Cr | 11.5 kN |
| Static load Cor | 10.6 kN |
| Speed in grease | 8000 rpm |
| Speed in oil | 9400 rpm |
