SKU: 6021NR/C3-SKF

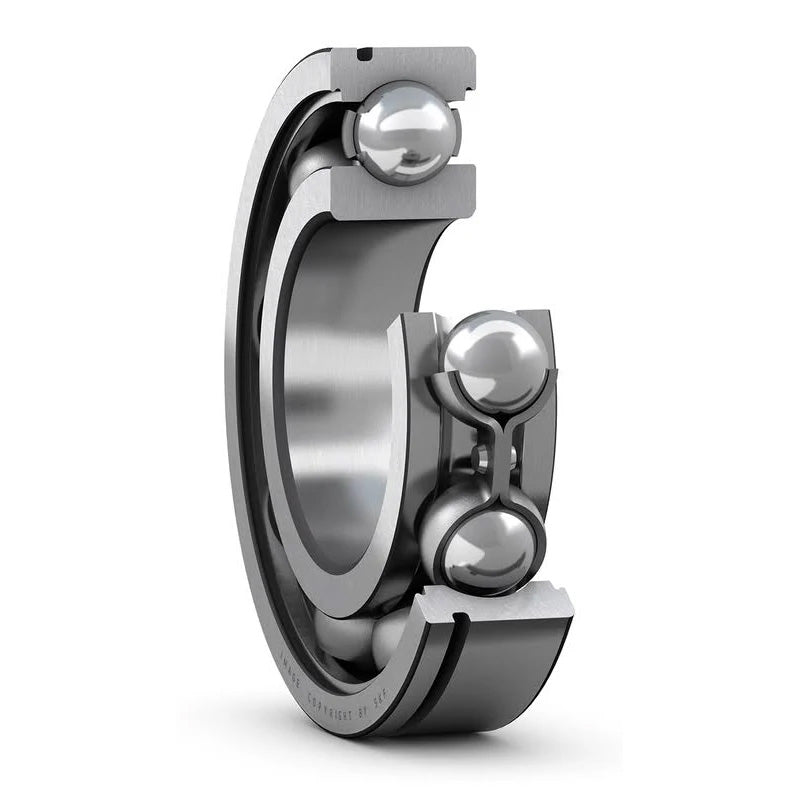

SKF 6021NRC3 Open Type Snap Ring Deep Groove Bearing 105x160x26mm
SKF 6021NRC3 Open Type Snap Ring Deep Groove Bearing 105x160x26mm
Out of stock
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 105mm
- Outside Diameter:
- 160mm
- Width:
- 26mm
- Seals / Shields:
- None
- Clearance:
- C3
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 105mm |
|---|---|
| D | 160mm |
| B | 26mm |
| Dynamic load C | 76.1 kN |
| Static load Co | 65.5 kN |
| Fatigue load limit Pu | 2.4 kN |
| Reference speed | 8500 rpm |
| Limiting speed | 5300 rpm |
| Weight | 1.6kg |
| Snap ring | SP 160 |
| d1 | 122mm |
| D2 | 147mm |
| D3 | 155.22mm |
| D4 | 169.7mm |
| b | 3.1mm |
| f | 2.82mm |
| C | 3.71mm |
| r1r2 min | 2mm |
| ro max | 0.6mm |
| da min | 116mm |
| Da max | 149mm |
| Db min | 172mm |
| ba min | 3.5mm |
| Ca max | 6.53mm |
| ra max | 2mm |
| Calc Factor kr | 0.025 |
| fo | 16 |
