SKU: 602-2Z/C3-SKF

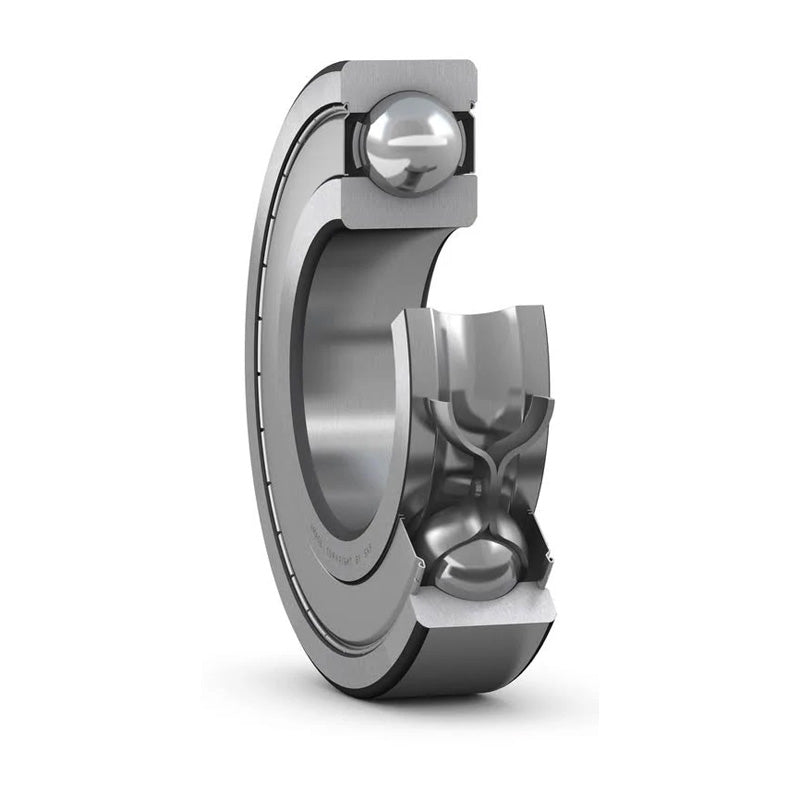

SKF 6022ZC3 Metal Shielded Deep Groove Ball Bearing 110x170x28mm
SKF 6022ZC3 Metal Shielded Deep Groove Ball Bearing 110x170x28mm
Equivalent to: 6022ZZEC3 6022ZZC3 6022.2ZC3 6022KDDC3 6022DDC3 60222ZRC3 6022FFC3
Out of stock
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 170mm
- Width:
- 28mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| d | 110mm |
|---|---|
| D | 170mm |
| B | 28mm |
| Dynamic load C | 85.2 kN |
| Static load Co | 73.5 kN |
| Fatigue load limit Pu | 2.4 kN |
| Reference speed | 8000 rpm |
| Limiting speed | 4000 rpm |
| Weight | 1.95 kg |
| d1 | 129mm |
| d2 | 0mm |
| D2 | 155mm |
| r1r2 min | 2mm |
| da min | 119mm |
| da max | 0mm |
| Da max | 161mm |
| ra max | 2mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 16 |
